Temperature sensors TR 153D, -30 to 200 °C

Temperature sensors TR 153D, -30 to 200 °C

Temperature sensors TR 153D, -30 to 200 °C

BBB

--%>

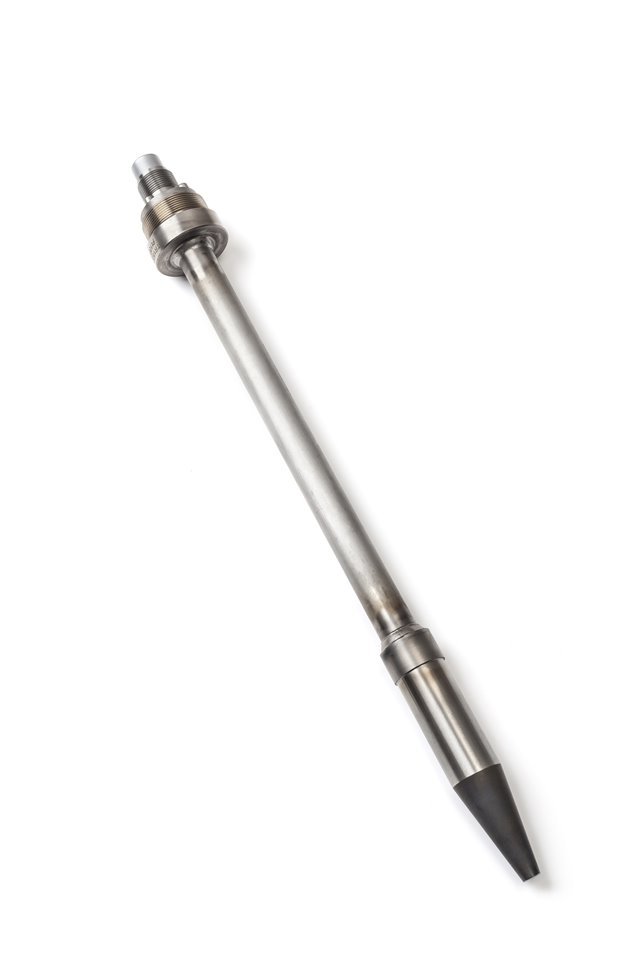

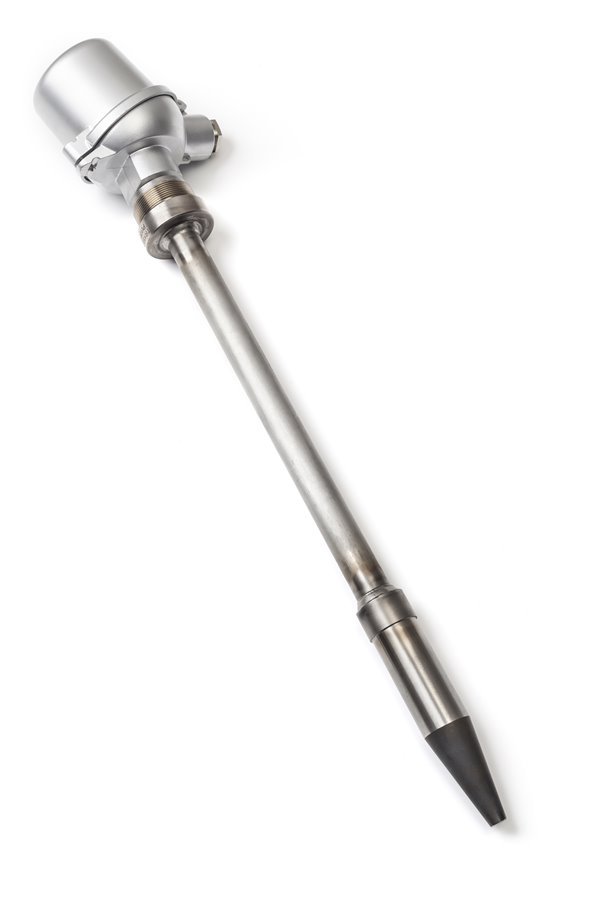

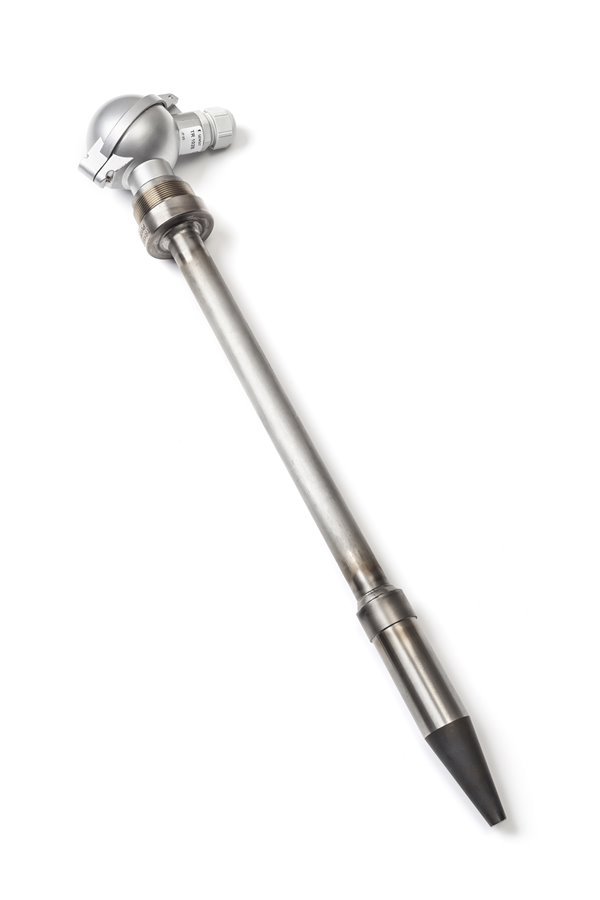

The TR 153D temperature sensor is designed taking into account specific needs of temperature measurement of the rubber mixtures processing in the rubber industry. The temperature sensor is equipped with the LEMO connector and can be completed by a metal connection head.

The temperature sensor is highly resistant to abrasion influence of rubber mixtures and to vibrations. The sensor can be also used to measure temperature of plastic and bulk materials. The case of the temperature sensor is made of stainless steel. And with its design, faster time response is achieved compared to sensors installed into a thermowell.

ACCESSORIES

  • DANW4-M2A-4x-NS-CaL connection head
  • Cable connector counterpart - LEMO FFA.2E.304.CLAC65
  • Connection cable with the LEMO FFA.2E.304.CLAC65 connector

DECLARATION, CERTIFICATION, CALIBRATION

  • Manufacturer provides EU Declaration of Conformity.
  • Calibration – The final metrological inspection – comparison with standards or working instruments – is carried out for all the products. Continuity of the standards and working measuring instruments is ensured within the meaning of the Section 5 of Act no.505/1990 on metrology. The manufacturer offers a possibility to supply the sensors calibrated in SENSIT s.r.o.’s laboratory (according to requirements of the EN ISO/IEC 17025 standard, as amended) or in an Accredited laboratory.


Technické parametry

Sensor type TR 153D
Type of sensing element Pt 100, TCK, TCJ, other as requested
Recommended measuring current ≤ 3 mA for Pt 100/3850 measuring element
Measuring range -30 to 200 °C
Connection 4wire
Case material stainless steel, measuring tip made of hardening steel
Time response
Immersion depth 100 mm

According to the EN 60751 standard, as amended: τ0.5 < 6 s, τ0.9 < 14 s
Continental method*: τ0.5 < 17 s, τ0.9 < 80 s

Minimum immersion depth 40 mm
Connector LEMO PCA.2E.304.CLLC
Connection head DANW4-M2A-4x-NS-CaL as accessory
Insulation resistance > 200 MΩ at 500 VDC, 25 ± 3°C, humidity < 80%
Weight 1.4 kg

* From 0 °C (crushed ice) to 180 °C (flowing silicon oil 0.4 ms-1)

Note: Manufacturer reserves the right to make changes in design and technical characteristics of the products. For actual information, please always contact your dealer.

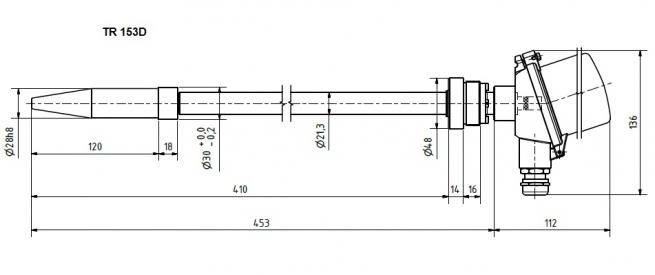

Rozměrový náčrt

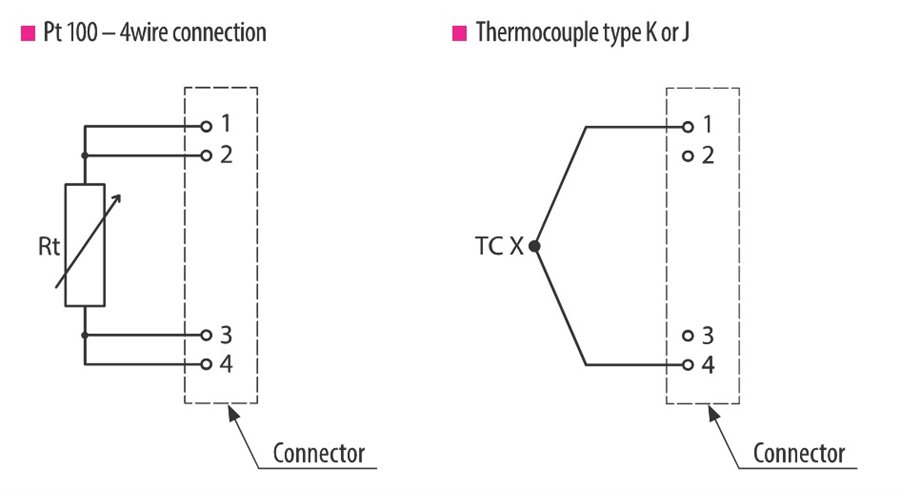

Schéma zapojení

Modifikace

Soubory ke stažení

EN_Datasheet - temperature sensor TR 153.pdf EN_Datasheet - temperature sensor TR 153.pdf
