TEMPERATURE PROBES S 91/260 and TC 91/280<br />-50 °C to 280 °C (short time 300 °C)

Nacházíte se:

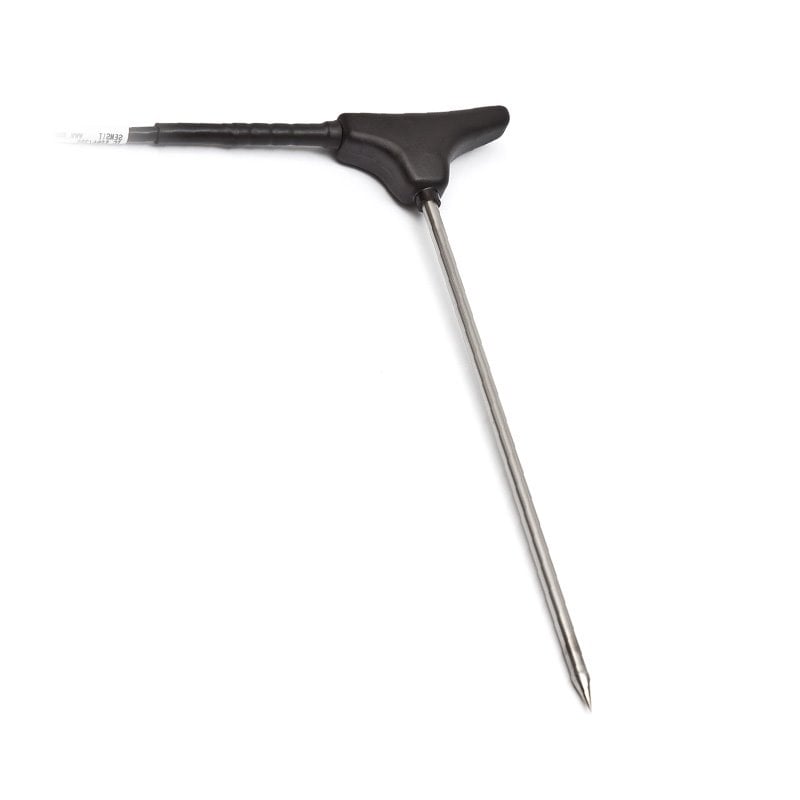

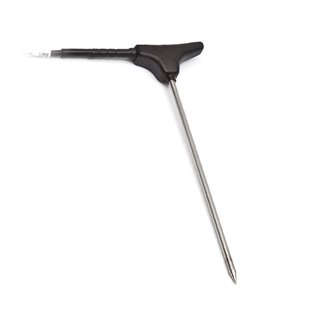

TEMPERATURE PROBES S 91/260 and TC 91/280
-50 °C to 280 °C (short time 300 °C)

On request

BBB

--%>

These resistance and thermocouple temperature probes S 91/260 and TC 91/280are designed for the measurement of temperature of loose materials and solid substances, consistency of which is such so the metal tip cannot be damaged. They can be used also for measuring of liquid and gaseous sustances. The temperature range for the use of the probe is -50 to 280 °C (short time 300 °C). The temperature probes consist of a metal tip (stainless steel DIN 1.4301), a handle and a lead-in cable. Material composition of the probe conforms to the requirements of Decree 38/2001 Coll. as amended. The design allows easy cleaning, thanks to which the temperature probes can be used in the food industry. The resistance sensing element is located in the tip of the stainless steel case.

The probes are intended for operation in chemically non-aggressive environment.

DECLARATION, CERTIFICATION, CALIBRATION

Manufacturer provides EU Declaration of Conformity.
Calibration – The final metrological inspection – comparison with standards or working instruments – is carried out for all the products. Continuity of the standards and working measuring instruments is ensured within the meaning of the Section 5 of Act no.505/1990 on metrology. The manufacturer offers a possibility to supply the sensors calibrated in SENSIT s.r.o.’s laboratory (according to requirements of the EN ISO/IEC 17025 standard, as amended) or in an Accredited laboratory.

Technické parametry

Probe type	S 91/260	TC 91/280
Measuring range	-50 to 260 °C (for a shor time 300 °C)	-40 to 280 °C (for a short time 300 °C)

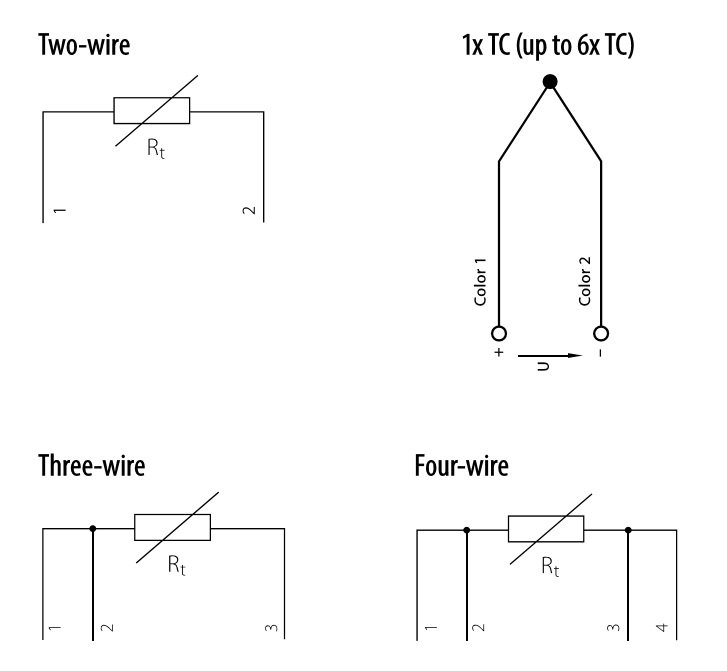

Type of sensing element*	all types	TC K
Number of measuring points	up to 3 measuring points (Pt)	up to 6 measuring points (TC K)
Ingress protection	IP 68 (1 bar) in accordance with EN 60529, as amended
Materil of the probe tip	stainless steel DIN 1.4301

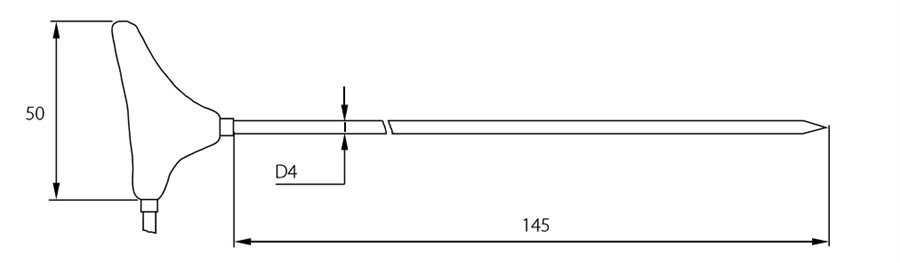

Diameter of the probe tip	4 mm
Length of the probe tip	145 mm – standard; 100 to 200 – modification
End of the probe tip	sharp – standard; flat, round, bevelled
Material of the handle	PEEK
Temperature resistance of the handle	up to 280 °C
Lead-in cable	teflon shielded or unshileded

*) Certain technical specifications of thermocouple sensors (lead wires, IP rating, etc.) may differ with different types.
Note: Manufacturer reserves the right to make changes in design and technical characteristics of the products. For actual information, please always contact your dealer.
