T3411 TEMPERATURE AND HUMIDITY SENSORS FOR INTERIOR AND OUTDOR USAGE WITH RS 485 OUTPUT AND DISPLAY

T3411 TEMPERATURE AND HUMIDITY SENSORS FOR INTERIOR AND OUTDOR USAGE WITH RS 485 OUTPUT AND DISPLAY

T3411 TEMPERATURE AND HUMIDITY SENSORS FOR INTERIOR AND OUTDOR USAGE WITH RS 485 OUTPUT AND DISPLAY

CONFIGURATOR

CONFIGURE AND REQUEST

22717
__KOUPIT__
__NABIDKA__
__JINY DOTAZ__

BBB

--%>

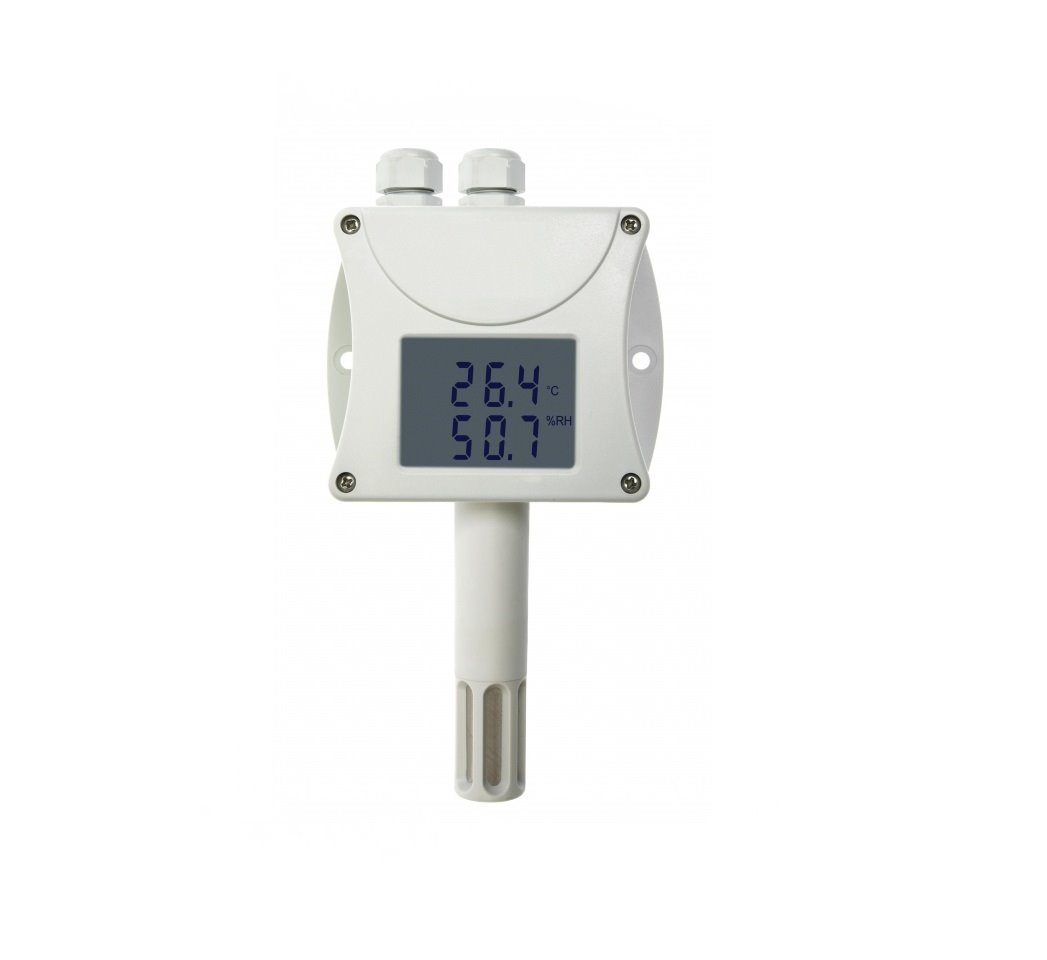

Ambient temperature, relative humidity transmitter. Outdoor, indoor use.

Relative humidity, temperature sensors on the cable. Measured values are also converted to other humidity interpretation: dew point temperature, absolute humidity, specific humidity, mixing ratio, specific enthalpy.

The device is supplied with T+RH probe with 1m cable. Cable lengths 2m or 4m available optionally.

Programmable temperature and humidity transmitter is equipped with temperature and relative humidity sensors. Measured values are also converted to other humidity interpretation - dew point temperature, absolute humidity, specific humidity, mixing ratio or specific enthalpy. Degrees Celsius and Fahrenheit are user selectable. Transmitter contains a microprocessor based control circuitry in a durable plastic case with connection terminals and sensors in a filter with stainless steel mesh. Large dual line LCD for simultaneous display of T+RH or other humidity interpretation is an advantage. Display is possible to switch off. Computerized design ensures temperature compensation of the humidity sensor and fail indication. State-of-the-art capacitive polymer sensor ensures excellent calibration long term stability, inertia against water and condensation. Transmitters are designed for use in non-aggressive environment.

Included in delivery:

  • T3411 sensor
  • Traceable calibration certificate
  • Quick start manual
Accessories

Technické parametry

Sensor typeT3411
measured valueTemperature
Relative humidity
Counted values (dew point…)
TEMPERATURE SENSOR
Measuring range  -30 to +80 °C
Accuracy ±0.4 °C
Resolution 0.1 °C
HUMIDITY SENSOR
Measuring range 0 to 100 % RH
Accuracy ±2.5 % RH from 5 to 95 % at 23 °C
Resolution  0.1% RH
DEW POINT
Measuring range -60 to +80 °C
Accuracy ±1.5 °C at ambient temperature T <25 °C and RH >30 %
Resolution 0.1 °C
MAIN TECHNICAL DATA
Operating temperature  -30 to +80 °C
Channels  internal temperature and humidity sensor
Counted values dew point, absolute humidity, specific humidity, mixing ratio, specific enthalpy
Output RS485
Range of humidity sensor temperature compensation all temperature range
Available temperature units degrees Celsius, degrees Fahrenheit
Communication protocol ModBus RTU, ARION, Advantech ADAM
Power 9-30 Vdc
Protection class IP65 electronics; IP40 sensors
Dimensions 88.5 x 170 x 39.5 mm; stem length 75 mm
Weight  approx. 150 g

Note: Manufacturer reserves the right to make changes in design and technical characteristics of the products. For actual information, please always contact your dealer.

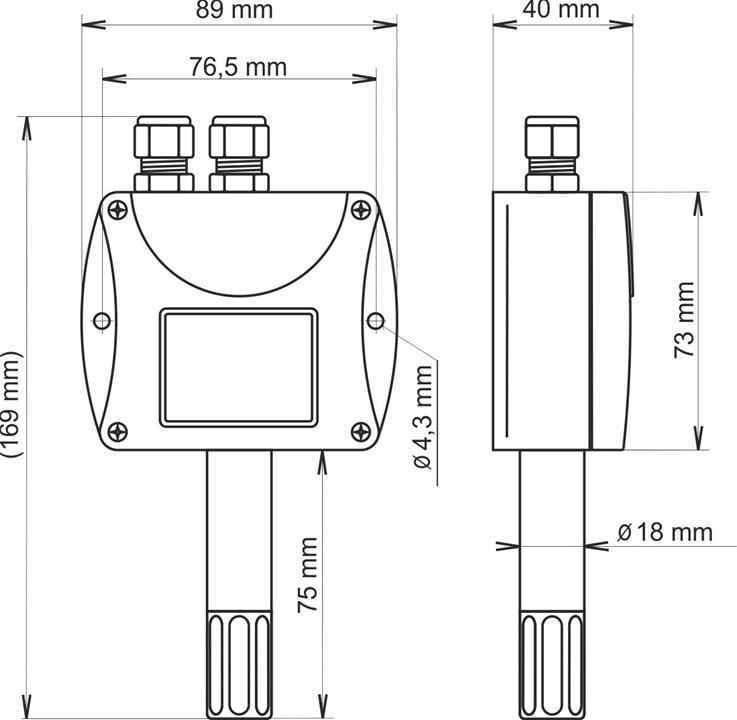

Rozměrový náčrt

Schéma zapojení

Modifikace

Soubory ke stažení
