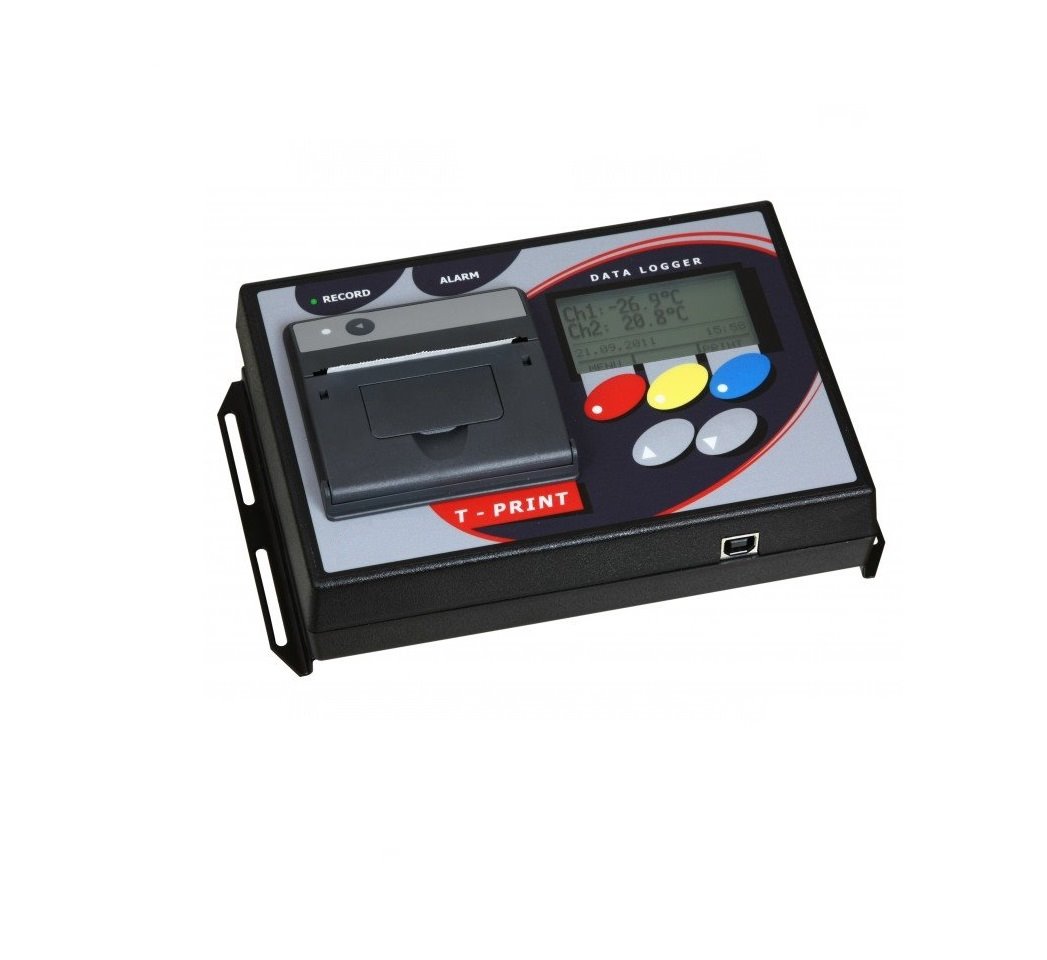

T-PRINT G0241 TEMPERATURE RECORDER WITH PRINTER, 2x BINARY INPUT

T-PRINT G0241 TEMPERATURE RECORDER WITH PRINTER, 2x BINARY INPUT

T-PRINT G0241 TEMPERATURE RECORDER WITH PRINTER, 2x BINARY INPUT

CONFIGURATOR

CONFIGURE AND REQUEST

22805
__KOUPIT__
__NABIDKA__
__JINY DOTAZ__

BBB

--%>

T-PRINT G0241 temperature recorder with printer, 2x binary input is complete solution for temperature record during the transport.

The device includes Traceable calibration certificate with declared metrological traceability of etalons is based on requirements of EN ISO/IEC 17025 standard.

  • print-out of temperature record during transport of food, pharmaceuticals, flowers, live animals and other goods
  • designed especially for installation in driver´s cabin
  • easy installation

Included in delivery:

  • Traceable calibration certificate with declared metrological traceability of etalons is based on requirements of EN ISO/IEC 17025 standard
  • Quick start manual
  • Free basic Windows software is ready to download



Technické parametry

Type of datalogg G0241
Measured Value Temperature
Construction Type For External Temperature Probes Pt1000
Temperature Measuring Range -90 to 260 °C
Two-State Input Yes
Lcd Display Yes
Built-In Printer Yes
Operating temperature range -30 to 65 °C
Accuracy of temperature input without probe ± 0.2 °C
Resolution of the reading 0.1 °C
Real time clock year, leap year, month, day, hour, minute, second
Data logging interval adjustable from 1 minute to 60 minutes
Total memory capacity 1 MB - up to 172 000 records
Data logging mode noncyclic - data logging stops after filling the memory
cyclic - after filling memory oldest data is overwritten by new
Dimensions 175 x 124 x 51 mm (W x H x D)
Power 9 to 32 Vdc, protected against alternator load shedding + internal Lithium battery
Consumption while printing approximately 8 W
Consumption - not printing approximately 0.1 W
IP protection IP20
Weight including battery 700 g
Warranty 3 years

Note: Manufacturer reserves the right to make changes in design and technical characteristics of the products. For actual information, please always contact your dealer.

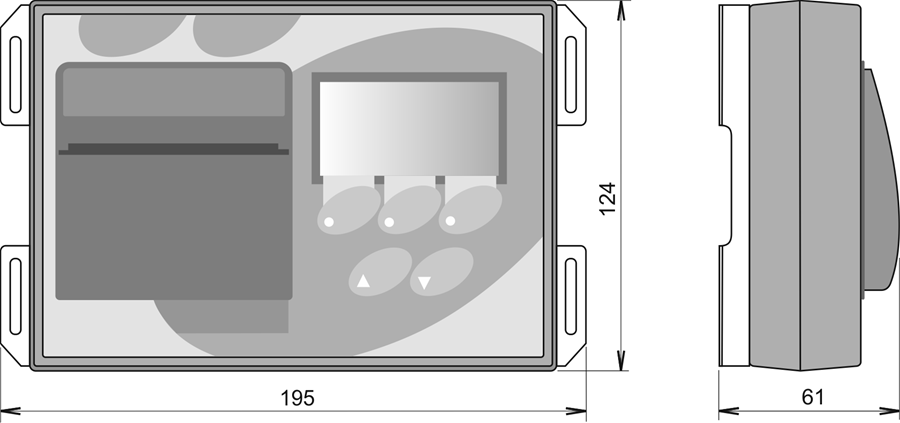

Rozměrový náčrt
