SPECIAL TEMPERATURE PROBE S 81/80
-30 °C to 80 °C

SPECIAL TEMPERATURE PROBE S 81/80
-30 °C to 80 °C

SPECIAL TEMPERATURE PROBE S 81/80
-30 °C to 80 °C
On request

BBB

--%>

These resitance temperature probes S x081 are designed for the measurement of temperature of frozen food. The temperature range for the use of the sensor -30 °C to 80 °C. Material composition of the probe conforms to the requirements of Decree 38/2001 Coll. ad amended. The design allows easy cleaning thanks to which the temperature probes can be used in the food industry. The resistance sensingg element is located in the tip of the stainless steel case.

The probes are intended for operation in chemically non-aggressive encironment.

DECLARATION, CERTIFICATION, CALIBRATION

  • Manufacturer provides EU Declaration of Conformity.
  • Calibration – The final metrological inspection – comparison with standards or working instruments – is carried out for all the products. Continuity of the standards and working measuring instruments is ensured within the meaning of the Section 5 of Act no.505/1990 on metrology. The manufacturer offers a possibility to supply the sensors calibrated in SENSIT s.r.o.’s laboratory (according to requirements of the EN ISO/IEC 17025 standard) or in an Accredited laboratory.



Technické parametry

Probe typeS 81/80
Measuring range-30 to 80 °C
Type of sensing element*all types
(Pt 100, Pt 1000, Ni 1000, Ni 10000,Ni 2226=T1, NTC, PTC, KTY, TSiC, DALLAS, TC K, TC J, TC T and so on)
Ingress protectionIP 67 in accordance with EN 60 529, as amended
Material of case
stainless steel DIN 1.4301
Diameter of the probe tip
D8 / D6 / D4 mm
Length of the probe tip
90 mm
Material of the handle
stainless steel DIN 1.4301
Lead-in cablesilicone shielded

*) Certain technical specifications of thermocouple sensors (lead wires, IP rating, etc.) may differ with different types.
Note: Manufacturer reserves the right to make changes in design and technical characteristics of the products. For actual information, please always contact your dealer.

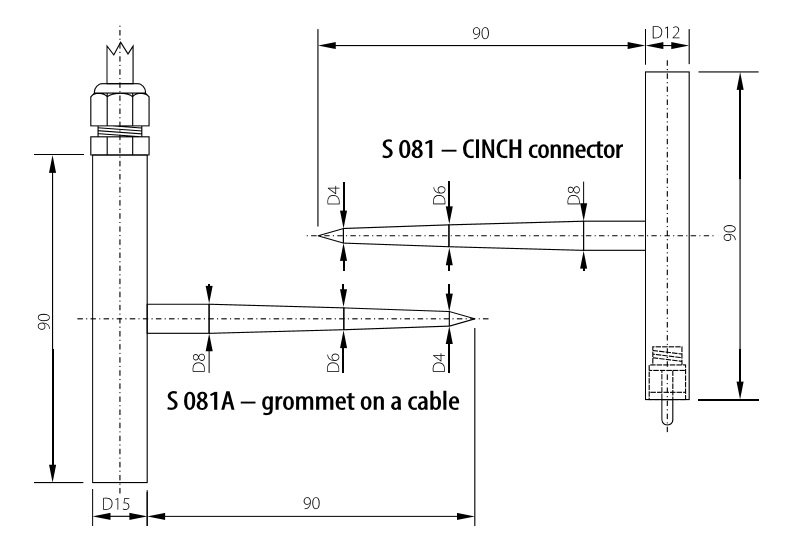

Rozměrový náčrt

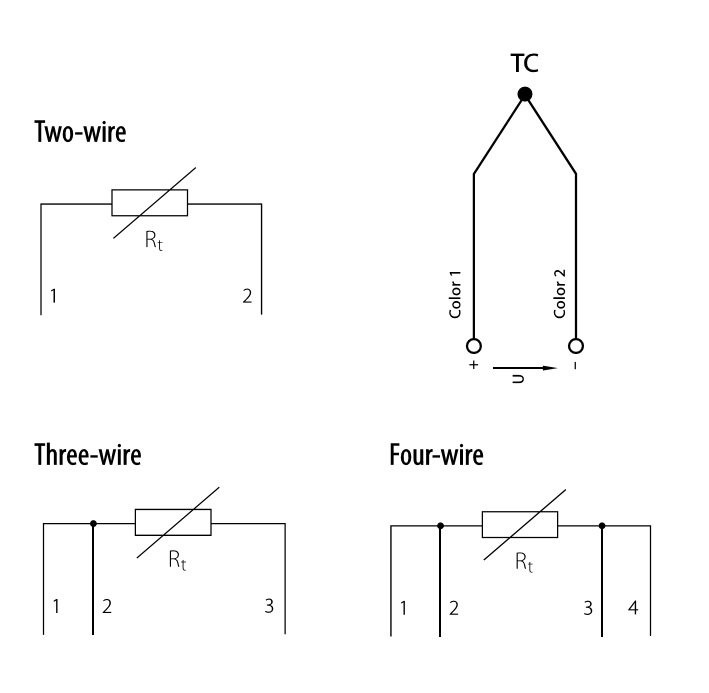

Schéma zapojení

Modifikace

Soubory ke stažení

S10.04en.pdf S10.04en.pdf
