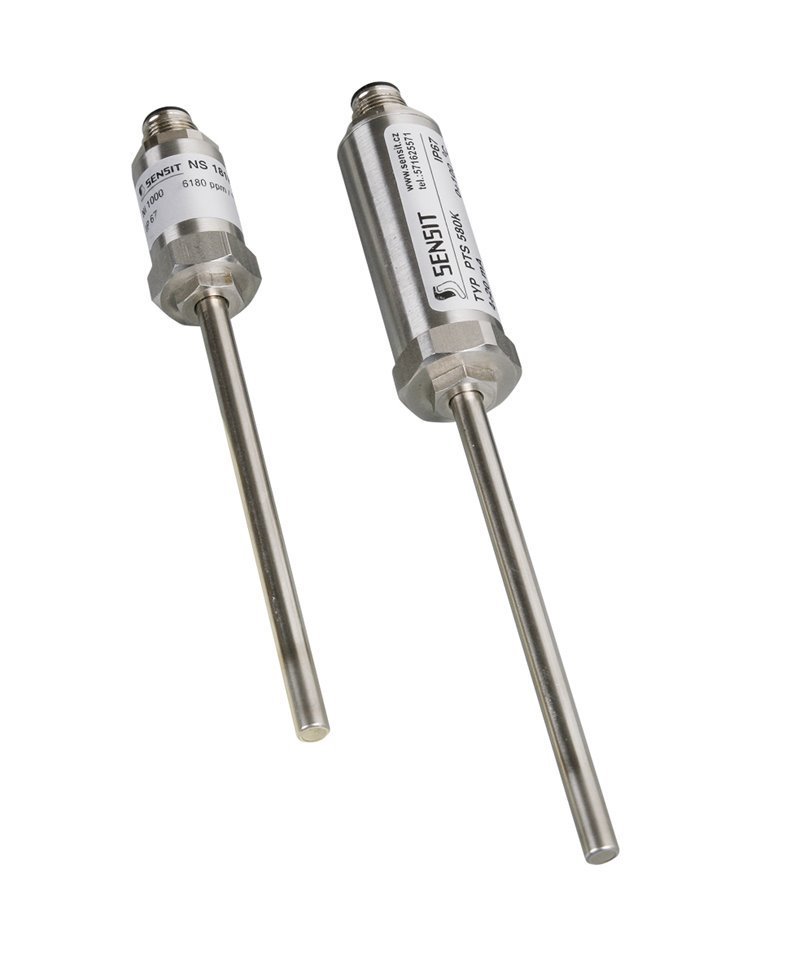

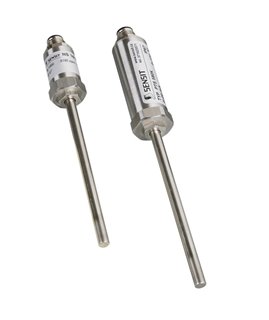

SD 186K - TEMPERATURE SENSORS WITH STAINLESS STEEL STEM, CONNECTION HEAD AND DIGITAL OUTPUT

SD 186K - TEMPERATURE SENSORS WITH STAINLESS STEEL STEM, CONNECTION HEAD AND DIGITAL OUTPUT

ZacWire / TSic x06

SD 186K - TEMPERATURE SENSORS WITH STAINLESS STEEL STEM, CONNECTION HEAD AND DIGITAL OUTPUT
On request

BBB

--%>

 This temperature sensor with a stem and stainless steel head and digital output ZACwire (TSic x06) - SD 186K is designed for contact temperature measurement of liquid and gaseous substances. In combination with a central holder, the sensor is suitable for temperature measurement in air conditioning ducts. The combination of a sensor and thermowell is suitable for measurement in pipelines. The material composition of the temperature sensor meets the requirements of Decree 38/2001 Coll., as amended, and thanks to the new design, the sensor can be easily cleaned. Due to these properties, the temperature sensors can be used in the food industry. The sensors consist of a metal head and a metal case, where the sensing element for temperature measurement (sensor) is placed. An integral part of the head is M12 series connector to which the sensor power supply cable and the digital output signal are connected according to the sensor type.

SD 186K - TSiC 206, 506 and 716 digital temperature sensors, ZACwire communication protocol

The temperature range of sensor use is defined in the table of technical parameters. The sensors meet the ingress protection of IP 65 according to EN 60529, as amended. The temperature sensor with a stem and stainless steel head and digital output ZACwire (TSic x06) - SD 186K is designed to be operated in a chemically non-aggressive environment, the use must be chosen with regard to the temperature and chemical resistance of the sensor head.

  ACCESSORIES

DECLARATION, CERTIFICATES, CALIBRATION

  • Manufacturer provides EU Declaration of Conformity.
  • Calibration – The entire production passes through a final metrological inspection, which is carried out by comparing with standards or working measuring instruments. Continuity of the standards and working measuring instruments is ensured within the meaning of Section 5 of Act No. 505/1990 on Metrology. The manufacturer offers to supply the sensors calibrated in the SENSIT s.r.o. laboratory (according to requirements of the EN ISO/IEC 17025 standard, as amended) or in an accredited laboratory.

Technické parametry

Sensor type SD 186K
Output signal
ZACwire / TSic x06
Measuring range *)
TSic 206 and 306 - 30 to 100 °C
TSic 506 and 706 - 10 to 60 °C
Accuracy of the electronics
± 0.2 °C
Type / Accuracy of the sensing element
TSic 206 ± 0.5 °C in range 10 to 90 °C
TSic 306 ± 0.3 °C in range 10 to 90 °C
TSic 506 ± 0.1 °C in range 5 to 45 °C
TSic 716 ± 0.07 °C in range 25 to 45 °C
Supply voltage (U) 3 to 5.5 V DC
Rated supply voltage (Un)
3.3 V DC
Consumption / Supply current
30 µA
Working conditions
ambient temperature: -30 to 70 °C
relative air humidity: max. 100%
atmospheric pressure: 70 to 107 kPa
Ingress protection IP 67 in accordance with EN 60529, as amended
Resistance to pressure
(impact on the stem with the medium)
withouth a thermowell PN 25
with a thermowell PN 63
Time response
τ0.5 < 9 s (0.2 m/s-1 in running water)
Standard lenght of the stem 70, 120, 180, 240, 300, 360, 420 mm
Diameter of the stem
6 ± 0.1 mm
Material of the stem
stainless steel DIN 1.4301
Insulation resistance > 200 MΩ at 500 V DC, 25°C ± 3 °C; humidity < 85 %
Type of the connector
RSFM4 - M12- Lumberg
Material of the connection head stainless steel DIN 1.4301
Dimensions of the connection head
(withouth a connector)
D 21.7 x 23 mm
Weight min. 100 g

*) by extending the stem length by 60 mm above the thread, the temperature sensor SD185K can be used up to 200 °C.

MAXIMUM SPEED OF WATER / AIR FLOW OR WATER VAPOUR FLOW WHEN MEASURING THE TEMPERATURE IN THE PIPELINES:

Length of the case in mm
Flow speed of water / air
without a thermowell
Flow speed of water / air
with a thermowell
up to 60 2 / 20 m-1 3.5 / 35 m-1
> 70 to 120 1.5 / 15 m-1 3.0 / 30 m-1
> 120 to 180 1.0 / 8.0 m-1 2.0 / 15 m-1
> 180 to 240 0.6 / 2.5 m-1 1.2 / 5 m-1
> 240 to 420 0.3 / 0.6 m-1 0.8 / 1.6 m-1

Note: Manufacturer reserves the right to make changes in design and technical characteristics of the products. For actual information, please always contact your dealer.

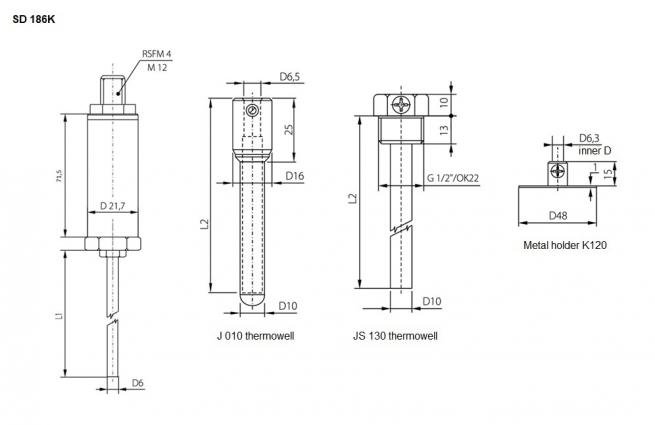

Rozměrový náčrt

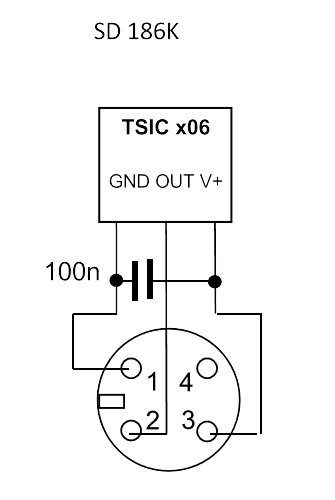

Schéma zapojení

Modifikace

  • variable stem design in the area - L1 lenggth, material, diameter, possibility of threaded design
  • the length of the sensor cable for the version with a grommet
  • thermowell thread type

Soubory ke stažení

109.01en.pdf 109.01en.pdf
