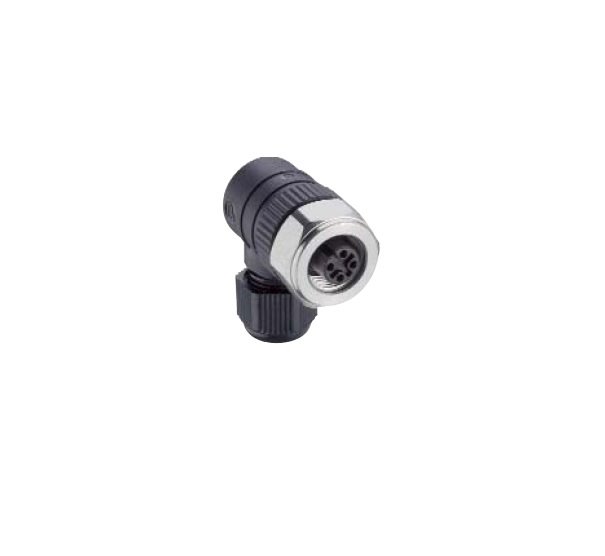

Rectangular connector RKCWN
to the cable FEMALE

Rectangular connector RKCWN
to the cable FEMALE

Rectangular connector RKCWN
to the cable FEMALE
On request

BBB

--%>

Terminal connector RKCWN 4/7 is determined to connected cable tempeature senosrs with connector ELST 4012 and regular system. We are able to connected to the connector cable according wishes of the customer (type of material, wires, length and so on). Connector is possible to use for temperature sensors with connection head and connector too:

  • S 110 series - temperature sensor for out door use
  • S 120 series - temperature sensors with stem and plastic connection head (immersion temperature sensors)
  • S 140 series - contact temperature sensors with plastic connection head
  • S 160 series - temperature sensors with plastic connection head and fast response
  • S 180 series - temperature sensors with stem and stainless steel connection head
  • S MINI series - temperature sensorts MINI series

Technické parametry

Type RKCWN 4/7
Type of contact female
Number of contacts 4
Cable gland SW 15
Housing Color black
Rated voltage 250 V
Rated current 4 A in 40 °C
Type of termination screw
Suitable cables diameter 3 mm to 6.5 mm, max. 0.75 mm2
Contact material Cu Zn
Housing material PBT
Protection class IP67
Temperature range -25 °C to 90 °C



Note: Manufacturer reserves the right to make changes in design and technical characteristics of the products. For actual information, please always contact your dealer.

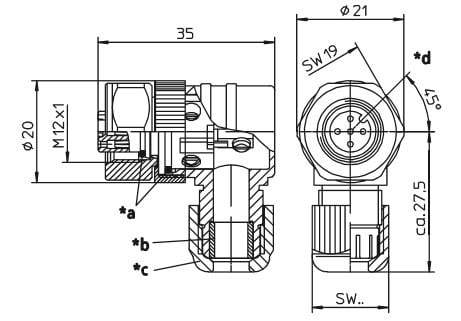

Rozměrový náčrt

Schéma zapojení

Modifikace

Soubory ke stažení

040.11en.pdf 040.11en.pdf
