PTS 64-1W TEMPERATURE SENSORS UP TO 600 °C WITH DIGITAL OUTPUT

PTS 64-1W TEMPERATURE SENSORS UP TO 600 °C WITH DIGITAL OUTPUT

PTS 64-1W and PTS 66-1W

PTS 64-1W TEMPERATURE SENSORS UP TO 600 °C WITH DIGITAL OUTPUT
On request

BBB

--%>

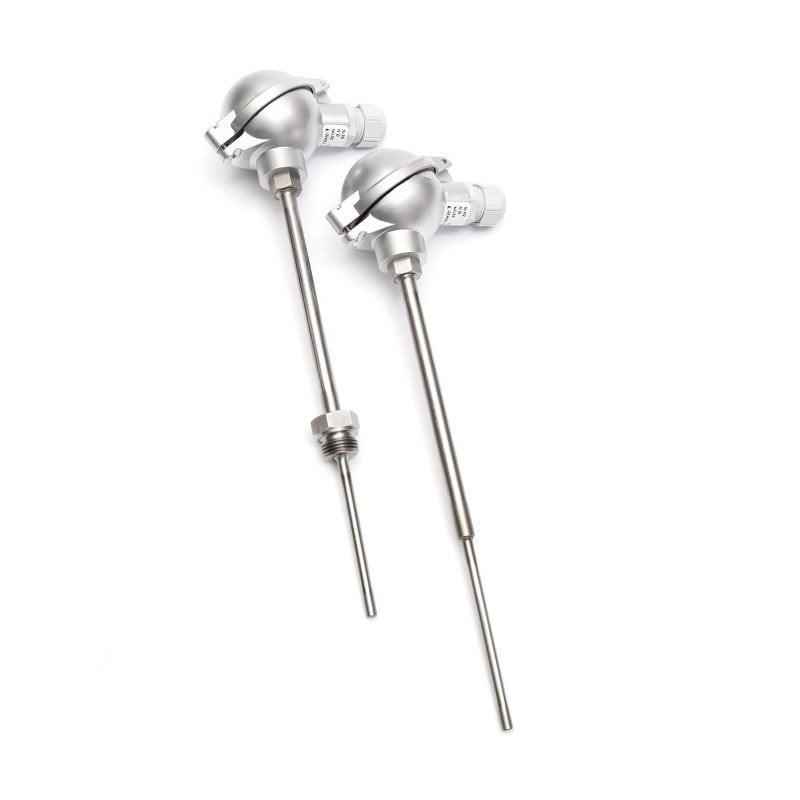

 These temperature sensors PTS 64-1W and PTS 66-1W up to 600 °C with digital output 1-Wire / DS18B20 are designed for contact measurement of temperature up to 600 °C. In combination with a central holder or a thermowell, it is possible to use the temperature sensors for temperature measurement in various industrial applications. The version of a sensor with a welded screw-on fitting is suitable for direct measurement of the medium in pipelines. The sensors consist of a metal head and a metal case, where the sensing element for temperature measurement (sensor) is placed. In the head, there is a converter with a terminal block located, to which a 1-Wire bus supply cable is connected through a cable grommet or a connector.

The basic versions of these sensors are:
PTS 64-1W
--- smooth stem version, communication via the 1-Wire bus
PTS 66-1W --- version with a welded screw-on fitting, communication via the 1-Wire bus

The standard temperature range of the sensors is -50 to 600 °C. The sensors meet IP 68 ingress protection according to EN 60529, as amended. The sensors are designed to be operated in a chemically non-aggressive environment, the use must be chosen with regard to the temperature and chemical resistance of the sensor head.

ACCESSORIES

DECLARATION, CERTIFICATION, CALIBRATION

  • The manufacturer issues an EU Declaration of Conformity.
  • Calibration – The entire production passes through a final metrological inspection, which is carried out by comparing with standards or working measuring instruments. Continuity of the standards and working measuring instruments is ensured within the meaning of Section 5 of Act No. 505/1990 on Metrology. The manufacturer offers to supply the sensors calibrated in the SENSIT s.r.o. laboratory (according to requirements of the EN ISO/IEC 17025 standard, as amended) or in an accredited laboratory.

Technické parametry

Sensor type PTS 64-1W PTS 66-1W
Output signal 1-Wire
Measuring range -50 to 600 °C
Accuracy of the electronics ± 0.25 °C
Type / Accuracy of the sensing element Pt 1000 / ± (0.3 °C + 0.0005 |t|)
Supply voltage (U) 4.5 - 5 V DC
Supply current 6.5 mA
Working conditions ambient temperature: -10 to 60 °C
relative air humidity: max. 100 %
atmospheric pressure: 70 to 107 kPa
Ingress protection IP 54 in accordance with EN 60529, as amended
Time response τ0.5 < 9 s (0.2 m.s-1 in running water)
Resistance to pressure
(impact on the stem with the medium)
without a thermowell PN 25
with a thermowell PN 63
without thermowell PN 25
Insulation resistance > 200 MΩ at 500 V DC at a temperature of 25 ± 3 °C; humidity < 85 %
Material of the stem stainless steel DIN1.4301
Standard stem lengths 50, 100, 160, 220, 280, 400 mm
Standard stem diameter 6 ± 0.2 mm
Thread types / G 1/2"; M 20 x 1.5; M 27 x 2
Material of the connection head aluminium alloy, LIMATHERMB
Recommended wire cross section 0.35 to 1.5 mm2
Weight min. 250 g


MAXIMUM FLOW SPEED OF THE MEASURED MEDIUM - AIR AND WATER VAPOUR / WATER [m.s-1 ]
Stem length L1 > 60 to 100 mm > 100 to 160 mm > 160 to 220 mm > 220 to 400 mm
Values for types with thread 15 / 1.5 8.0 / 1.0 2.5 / 0.6 0.6 / 0.3

Note: Manufacturer reserves the right to make changes in design and technical characteristics of the products. For actual information, please always contact your dealer.

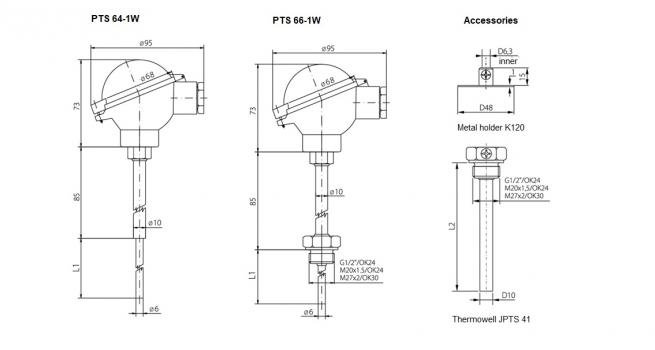

Rozměrový náčrt

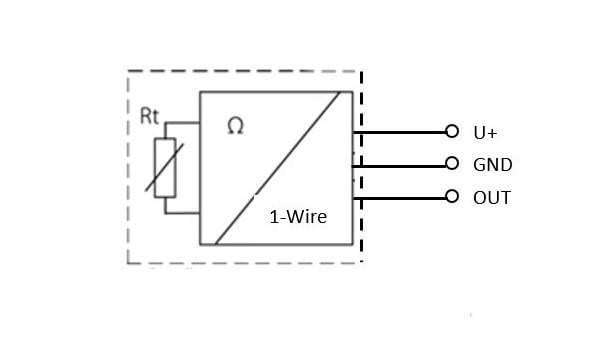

Schéma zapojení
