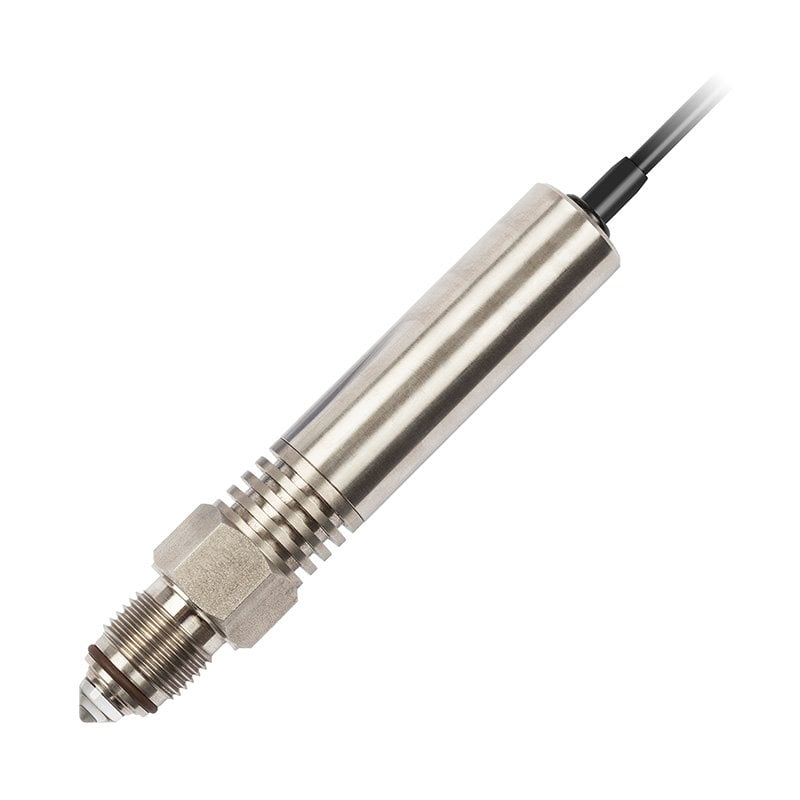

OPTICAL LIQUID LEVEL SENSORS TO 140 °C

Nacházíte se:

On request

BBB

--%>

DESCRIPTION AND APPLICATION

Optical liquid level sensors are intended for measurement, regulation and control of production in foodstuff (e.g. beverages production) or pharmaceutical industry. They are used also in applications of sensing of a tank filling or emptying, min. and max. liquid level detection, a pump dry run protection etc.

Accessories

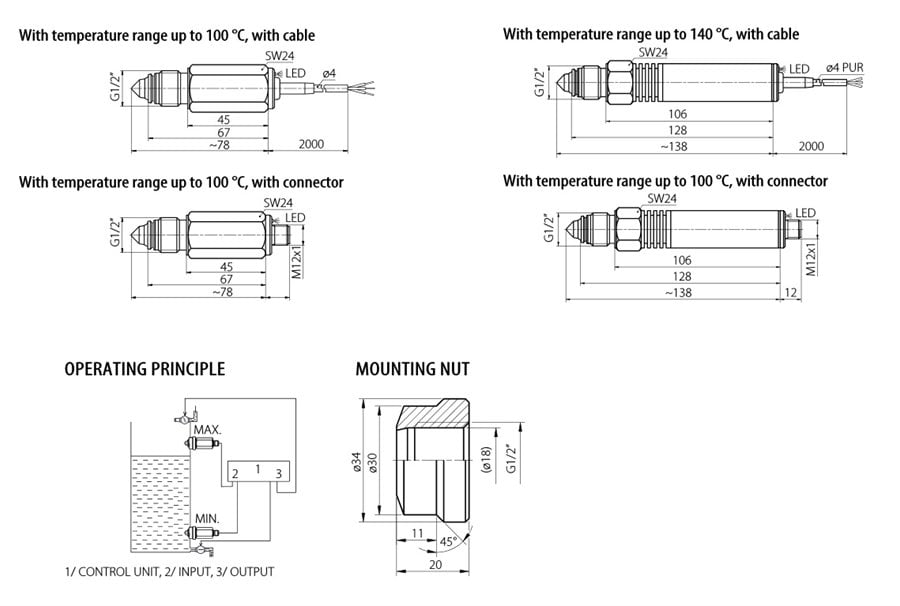

metal nut OPT for optical sensor tip

Variants of optical liquid level sensors:

Type ,,A" - suitable for oil liquids (e.g. coling emulsions, oil, crude, hydraulic oil, milk, etc.)
Type ,,B" - suitable for liquids with foam (e.g. beer, ,,cola" type drinks) and other liquids (e.g. water)

Technické parametry

Sensor	with cable	with connector
Nominal voltage Un	24 V DC
Power supply U	12 - 30 V DC
Supply current Ic	< 25 mA
Output current Iz	≤ 200 mA
Output indicator	LED
Reversed polarity protection	YES
Switching distance (% of a dipped setting tip)	<approximately 50 %
Switching frequency	35 Hz
Measuring range	-25 °C to 140 °C - temperature in a process -25 °C to 80 °C - ambient temperature
Case material /sensing tip	stainless steel / crystall glass
Maximum operating pressure	2 MPa
Ingress protection	IP 68	IP 67
Connection type	cable PVC 3 x 0.25 mm²; 2 m	connector M12

Variants of optical liquid level sensors:

Type ,,A" - suitable for oil liquids (e.g. coling emulsions, oil, crude, hydraulic oil, milk, etc.)
Type ,,B" - suitable for liquids with foam (e.g. beer, ,,cola" type drinks) and other liquids (e.g. water)

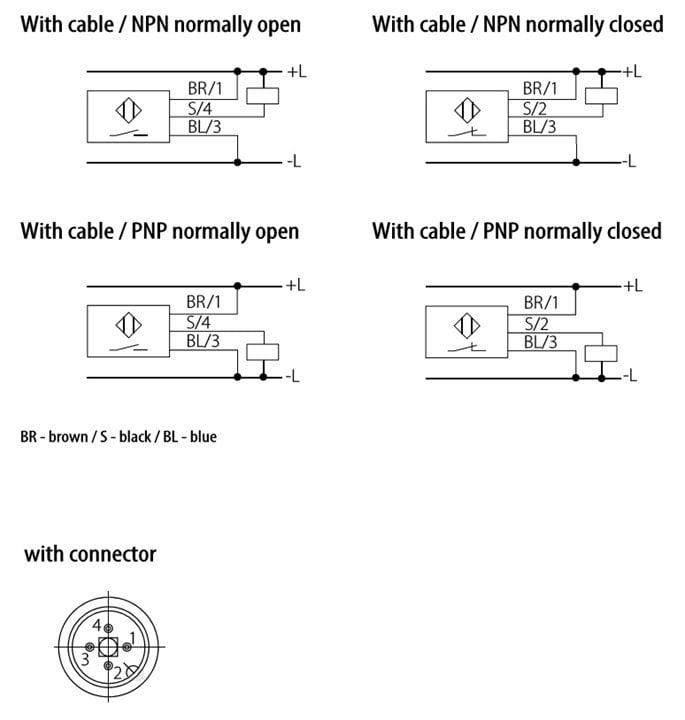

		Order reference number
Output		With cable		With connector
Output		TYPE "A"	TYPE "B"	TYPE "A"	TYPE "B"
NPN	n.o.	POS 287 311 A	POS 287 311 B	POS 287 411 A	POS 287 411 B
NPN	n.c.	POS 287 312 A	POS 287 312 B	POS 287 412 A	POS 287 412 B
PNP	n.o.	POS 287 313 A	POS 287 313 B	POS 287 413 A	POS 287 413 B
PNP	n.c.	POS 287 314 A	POS 287 314 B	POS 287 414 A	POS 287 414 B

Note: Manufacturer reserves the right to make changes in design and technical characteristics of the products. For actual information, please always contact your dealer.
