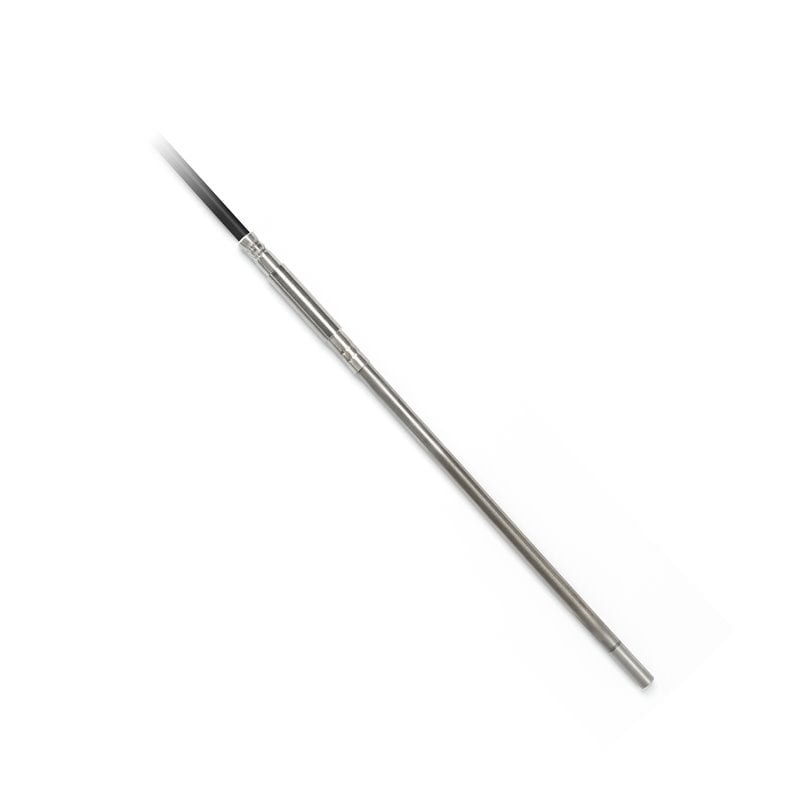

Mineral insulated (MGO) resistance temperature sensors are designed for measuring the temperature of gaseous, liquid or solid substances. Their main advantage compared to the standard design of resistance temperature sensors is the possibility to form the shape of the sensor body. The temperature range of the measuring end of the sensor is up to 600 °C, according to the temperature sensor design. These mineral insulated (MGO) resistance temperature sensors can be used for all control systems compatible with the type of sensing element stated in the table of technical parameters. Mineral insulated (MGO) resistance temperature sensors meet the degree of protection of up to IP 67 according to EN 60529, as amended, depending on the type of lead in cable and production technology used. The diameter of the temperature sensor is 6 mm. Mineral insulated (MGO) resistance temperature sensors are designed for operation in chemically non-aggressive environments, the using must be chosen with regard to temperature and chemical resistant housing and a cable.
ACCESSORIES
DECLARATION, CERTIFICATION, CALIBRATION
- Manufacturer provides EU Declaratin of Conformity.
- Calibration – The final metrological inspection – comparison with standards or working instruments – is carried out for all the products. Continuity of the standards and working measuring instruments is ensured within the meaning of the Section 5 of Act no.505/1990 on metrology. The manufacturer offers a possibility to supply the sensors calibrated in SENSIT s.r.o.’s laboratory (according to requirements of the EN ISO/IEC 17025 standard, as amended) or in an Accredited laboratory.
