INSULATED PROGRAMMABLE CONVERTER OF DC SIGNALS (with 4 to 20 mA output) PX310S

INSULATED PROGRAMMABLE CONVERTER OF DC SIGNALS (with 4 to 20 mA output) PX310S

INSULATED PROGRAMMABLE CONVERTER OF DC SIGNALS (with 4 to 20 mA output) PX310S
On request

BBB

--%>

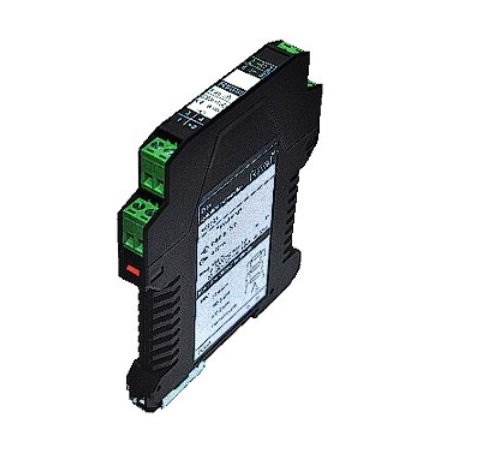

Converter PX310S with galvanic separation 3.7 kVef converts signal from any thermocouple with linearisation and internal cold end compensation; from RTD, resistance transmitter or potentiometer; or from voltage 0 to 1 V DC.

The SLIM Design for installation in a switchboard on a DIN 35, 12.5mm rail.

OUTPUT SIGNAL VARIANTS

User adjustable inputs: (The actual input and scope of measurement can be set within the limits of the stated maximum range)

Other input designs: (necessary modification of the basic design)

  • Thermocouple temperature meter with an option of external cold end compensation by the Pt 100 sensor
  • Resistance transmitter or potentiometer 3kΩ to 10 kΩ
  • Thermistors NTC 10k, 15k, 20k, 25k…
  • KTY linear temperature sensors, thermistors, etc., as agreed
  • Possibility of input adjustment to customer’s requirements

Technické parametry

Input Measuring range (linearization table) Error







Thermocouples
(TC), internal compenzation
Fe-CuNi — J -210 to 1 200 °C 0.3 °C from -60 °C
-210 to 1 050 °C 0.3 °C from -100 °C
-210 to 300 °C 0.3 °C from -160 °C
Fe-Ko — L 0 to 899 °C 0.05 %
NiCr-NiAI — K -210 to 400 °C 0.3 °C from -150 °C
-270 to 1 372 °C 0.1 % from -99 °C
-60 to 1 372 °C 0.3 °C from -20 °C
Pt10Rh-Pt — S -50 to 1 768 °C 0.1 % from 40 °C
Pt30Rh-Pt6Rh — B 0 to 1 820 °C 0.1 % from 386 °C
NiCr-CuNi — E -270 to 1 000 °C 0.1 % from -153 °C
NiCrSi-NiSi — N -270 to 1 300 °C 0.1 % from -122 °C
Pt13Rh-Pt — R -50 to 1 768 °C 0.1% from 54 °C
Cu-CuNi — T -270 to 400 °C 0.1% from -163 °C
Ni-Ni18Mo — M -50 to 1 410 °C 0.10 %
W5Re-W26Re — C 0 to 2 301 °C 0.05 %
W3Re-W25Re — D 0 to 2 301 °C 0.1 % from 49 °C
W-W26Re — G 0 to 2 301 °C 0.1 % from 286 °C
F -30 to 1 400 °C 0.05 %
U -200 to 400 °C 0.10 %


Rezistance temperature
(RTD) 2w nebo 3w
Pt 100 -200 to 400 °C 0.18 °C
Pt 100 -30 to 600 °C 0.18 °C
Pt 1000 -200 to 400 °C 0.18 °C
Pt 1000 -100 to 500 °C 0.18 °C
Ni 100, Ni 1000 TKR6180 (5000) -60 to 180 °C 0.25 °C
Linear Temperature Sensor (KTY) KTY81 to KTY85 -55 to 150 °C 0.3 °C
Resistive Transmitter (OV) 0 to 320 Ω, 0 to 2,5 kΩ 0.03 Ω; 0.1 Ω
Potentiometer 0 to 320 Ω, 0 to 2,5 kΩ 0.03 Ω; 0.1 Ω
Potentiometer 10 kΩ 0 to 150 Ω, 0 to 1 300 Ω, 0 to 10 kΩ 0.03 Ω; 0.1 Ω; 1 Ω
DC voltage (U) -0.5 V to 1 V -70 mV to 140 mV; 0 až 1 V 0.01 %


Electrical specification
Supply voltage 10 to 30 V DC
User linearisation chart (32 sections
Sampling
16 / 20 ms for RTD and resistors, 52 /80 ms for TC, U, I
Digital filter (damping)
programmable 0 to 20 s
Max. resistance of sensor input
< 10 Ω / 1 wire
Current through sensor
< 0.5mA
Compensation of cold end temperature for
thermocouples
-30 to 70 °C, accuracy ± 1 °C
Output signal 4 to 20 mA, line power supply
Current output resolution
0.033 %
Output current limitation min. 3 mA, max. 21 mA
Accuracy
measurement error:0.07 °+ error, refer to the table
temperature error: max. 0.03 % / 10 K
Working temperature range
-30 to 70 °C
Ingress protection housing/terminal block
IP 40 / IP 20 according to ČSN EN 60529
Wiring conductor 0.5 to 2.5 mm2
Optional accessories Programmable adapter AY-USB

Note: Manufacturer reserves the right to make changes in design and technical characteristics of the products. For actual information, please always contact your dealer.

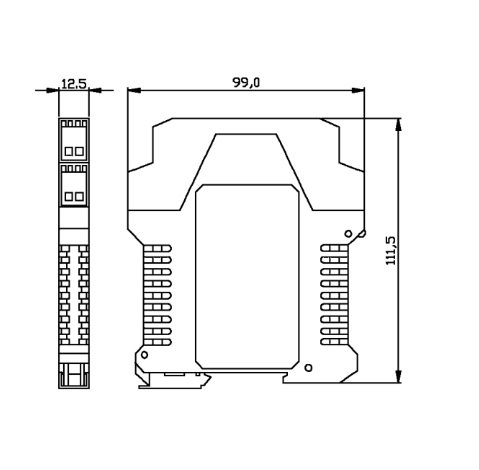

Rozměrový náčrt

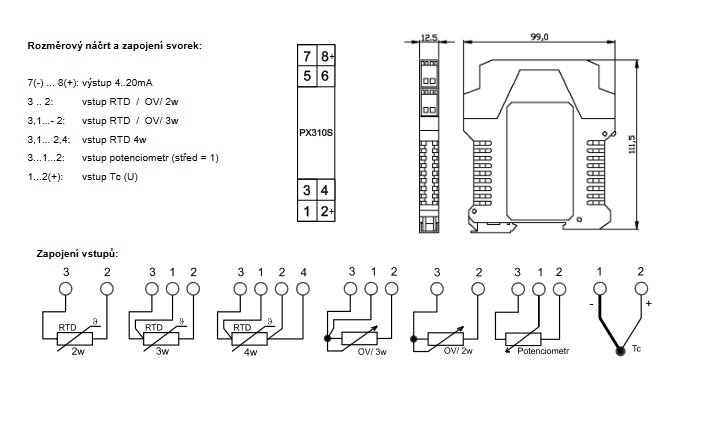

Schéma zapojení
