GSM/GPRS MODEM FOR DATA LOGGERS OF Sxxxx, Rxxxx, Gxxxx FAMILIES

GSM/GPRS MODEM FOR DATA LOGGERS OF Sxxxx, Rxxxx, Gxxxx FAMILIES

GSM/GPRS MODEM FOR DATA LOGGERS OF Sxxxx, Rxxxx, Gxxxx FAMILIES
On request

BBB

--%>

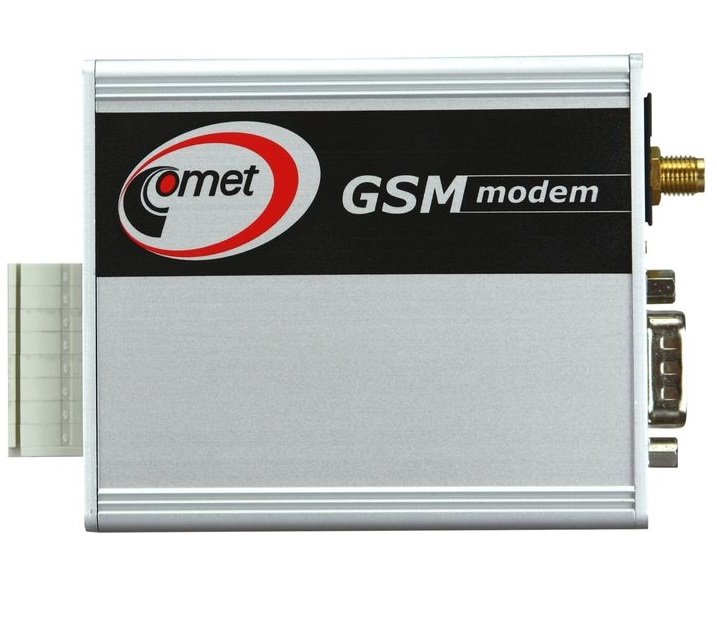

GSM/GPRS modem with SIM card holder - without accessories.

Modem sends alarm SMS, if buying services SLU302 - M2M allows full communication with data logger via GPRS - download logger configuration.

Technické parametry

Technical parameters Value
Communication with the device RS232 (connector Canon 9) for the COM adapter
Frequency band 850/900/1800/1900 MHz
Output power Class 4 (+33 dBm ± 2 dB) for EGSM850; Class 4 (+33 dBm ±2 dB) for EGSM900; Class 1 (+30 dBm ± 2 dB) for GSM1800; Class 1 (+30 dBm ±2 dB) for GSM1900
SIM card type 1,8 or 3 V
GPRS class multislot class 12
Antenna 50 ohm, SMA connector
Supply terminal block removable, WAGO 734, max. size of conductors 1.5 mm2
IP code IP30
Power supply external 9-32 V DC, peak input up to 10 W
Operating temperature range from -30 to 65 °C
Operating position arbitrary
Device mounting (optional equipment) self-adhesive Dual Lock, wall holder, DIN rail holder
Storage conditions temperature from -40 to 85 °C
Dimensions 105 x 71 x 24 mm (without antenna and holders)
Weight cca 180 g (without antenna and holders)
Box material anodized aluminum

Note: Manufacturer reserves the right to make changes in design and technical characteristics of the products. For actual information, please always contact your dealer.
