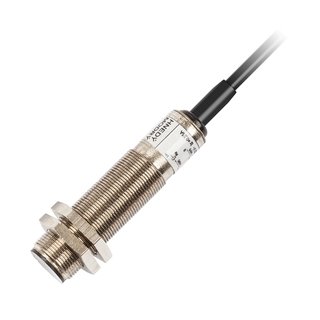

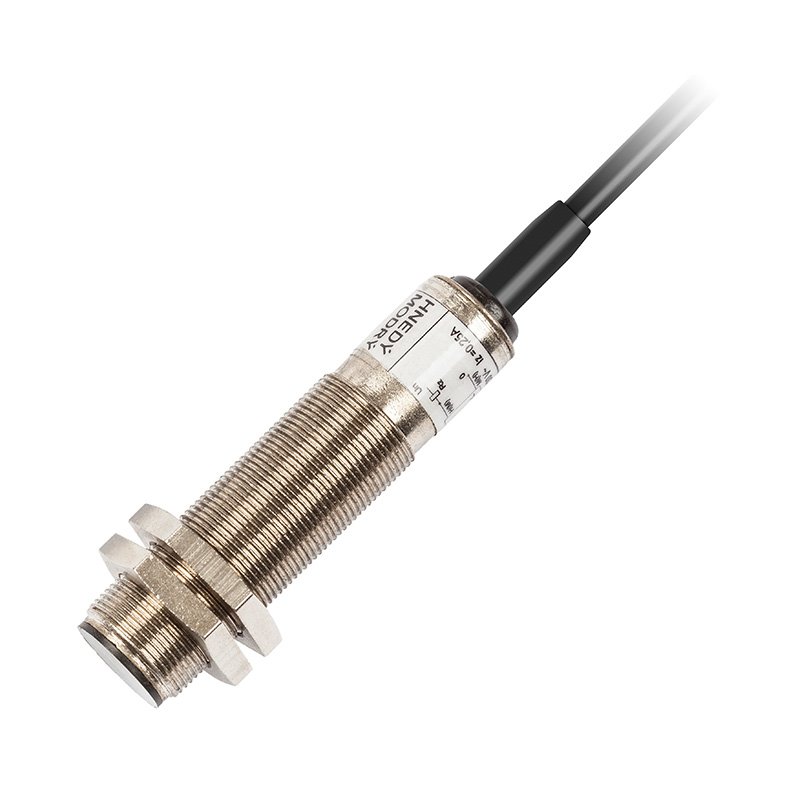

Flush inductive sensors
of rotation M18

Flush inductive sensors
of rotation M18

Flush inductive sensors
of rotation M18
On request

BBB

--%>

Inductive sensors of rotation are intended for monitoring of revolutions or speed. They are suitable especially in case of decentralized control. Inductive rotation sensors perform contatless monitoring of changes of revolutions compared with their reference value.

Technické parametry

Technical parameters
Design
With cable With connector
Nominal sensing distance Sn 5 mm
Effective sensing distance Sr 4 - 6 mm
Case M18
Case materail nickel plated brass
Mounting flush
Switching frequency
0.5 Hz; or up to request
Maximum frequency sensed
200 Hz
Hysteresis Sa (0.01 - 0.15) x Sn
Nominal voltage Un 24 V DC
Supply voltage Uc 15 - 30 V DC
Supply current Ic < 20 mA
Output current Iz < 200 mA
Shielding indicator
green LED
Output indicator
yellow LED
Ambient temperature range T -25 °C to 70°C
Ingress protection
IP 68 IP 67
Connection type cable PVC 3 x 0,25 mm2; 2 m connector M12


Order reference number
Output
With cable With connector
NPN n.o. PSI DI 186 391 PSI DI 186 491
PNP n.o. PSI DI 186 393 PSI DI 186 493

Note: Manufacturer reserves the right to make changes in design and technical characteristics of the products. For actual information, please always contact your dealer.

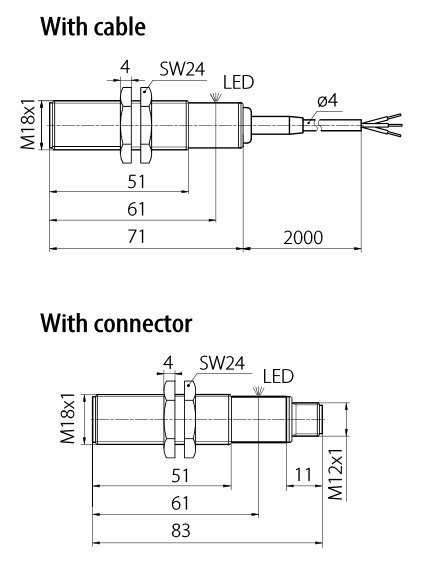

Rozměrový náčrt

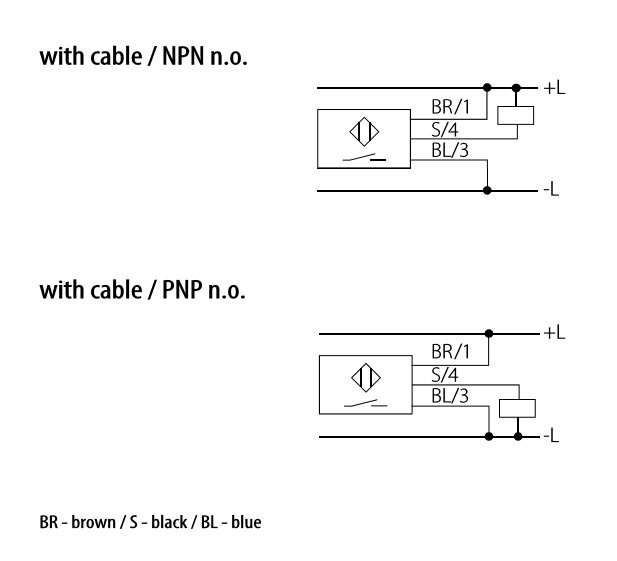

Schéma zapojení

Modifikace

Soubory ke stažení

211.03en.pdf 211.03en.pdf
