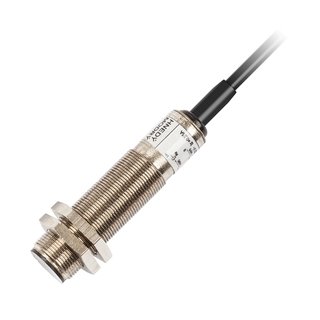

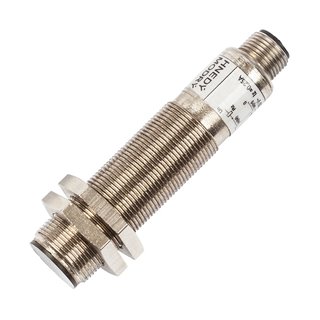

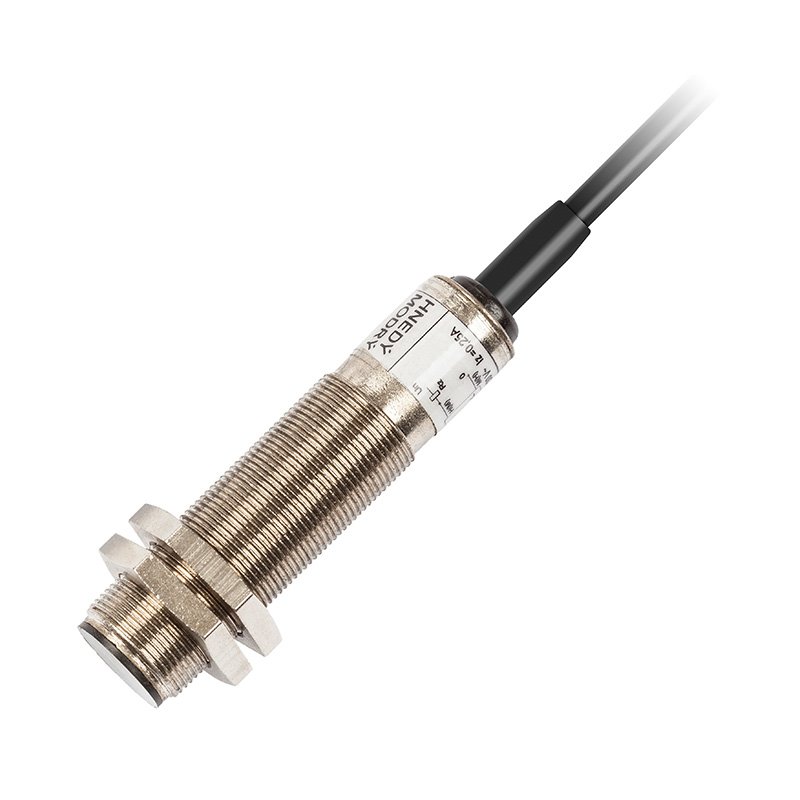

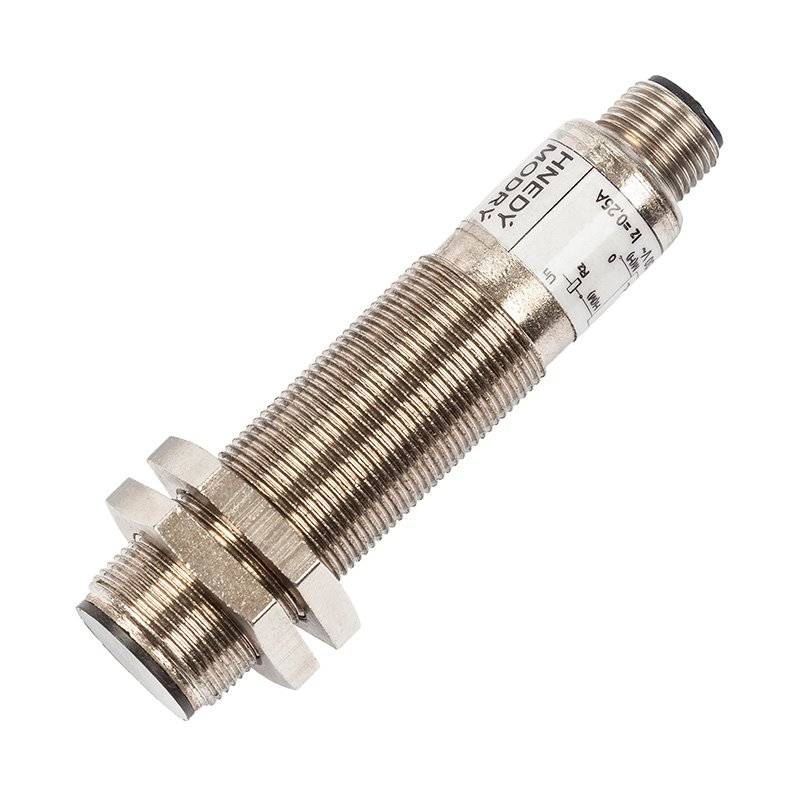

Flush inductive proximity switches
PDI M18 4wire

Flush inductive proximity switches
PDI M18 4wire

Flush inductive proximity switches
PDI M18 4wire

CONFIGURATOR

CONFIGURE AND REQUEST

22037
__KOUPIT__
__NABIDKA__
__JINY DOTAZ__

BBB

--%>

Inductive proximity switches are used for the monitoring of the presence or metal objects. Depending on the switch mode (normylly open/normally closed), the output closes or opens, when the conductive object approaching the active switching zone.

Operation - is maintenance-free. For a fault free operation it is however necessary to keep the following principles: Surfaces of the active switching zone have to be kept free, clean. It is necessary to prevent sediments and other foreign particles from touching and setting up the active surface of the sensor, especially when mounted in upright position (active surface upwards). High electromagnetic field intensity devices (e.g. radiophone) must not be used in the immediate vicinity of the sensors.

Connection of a switch to an electric circuit - Switch connectionmust meet the high protection standard required and resist the high operation temperatures. The proximity switches specified in this catalogue are delivered with 2 x 0.25 mm2, 3 x 0.25 mm2 or 4 x 0.25 mm2 PVC cable in length of 2 m. This type meets the IP 68 enclosure class. The quick-disconnect version is provided with the connector type complying with the IP 67 enclosure class.

Technické parametry

Technical parameters
Design
With cable With connector
Nominal sensing distance Sn 10 mm
Effective sensing distance Sr 8 - 12 mm
Case M18
Case material nickel plated brass
Mounting flush
Hysteresis Sa (0.01 - 0.15) x Sn
Nominal voltage Un 24 V DC
Supply voltage Uc 10 - 30 V DC
Supply current Ic < 10 mA
Output current Iz < 200 mA
Ambient temperature range T -25 °C to 70°C
Ingress protection
IP 68 IP 67
Connection type cable PVC 4 x 0,25 mm2 connector M12


Switching frequency
Design With cable With connector
Normal 200 Hz
Slow 20 Hz


Order reference number
OutputSwitching frequencyWith cableWith connector

NPN

n.o. & n.c.

Normal PDI 186 315PDI 186 415
SlowPDI 186 315 SPDI 186 415 S

PNP

n.o. & n.c.

NormalPDI 186 316PDI 186 416
SlowPDI 186 316 SPDI 186 416 S

Note: Manufacturer reserves the right to make changes in design and technical characteristics of the products. For actual information, please always contact your dealer.

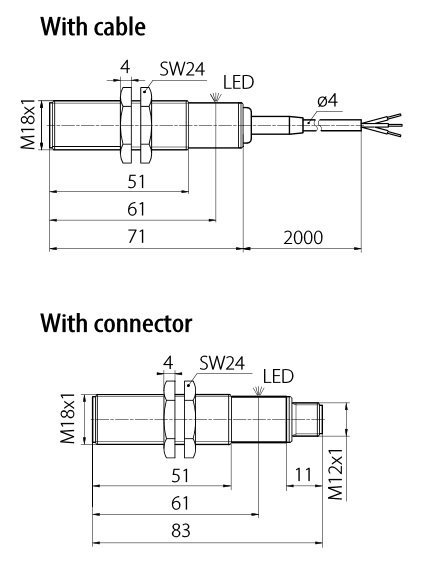

Rozměrový náčrt

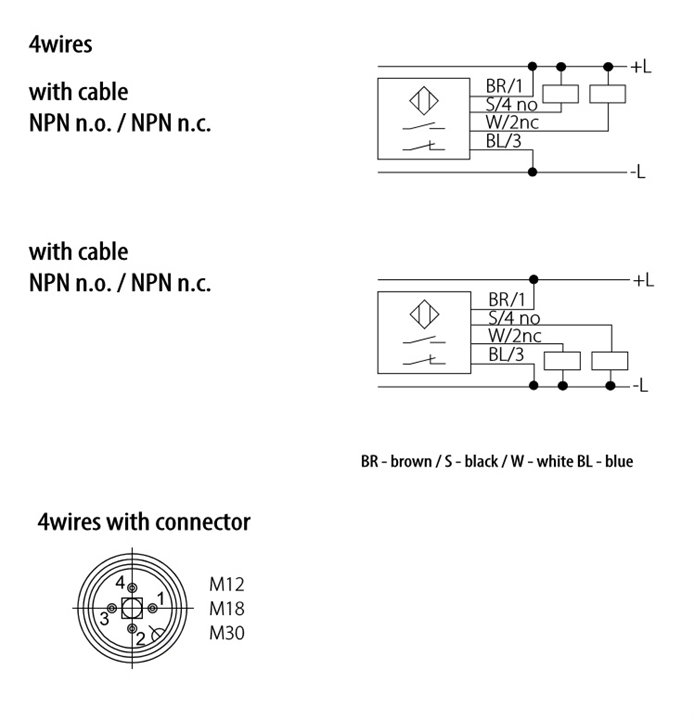

Schéma zapojení
