Direct welded-on piece

Nacházíte se:

CONFIGURATOR

CONFIGURE AND REQUEST

21671

BBB

--%>

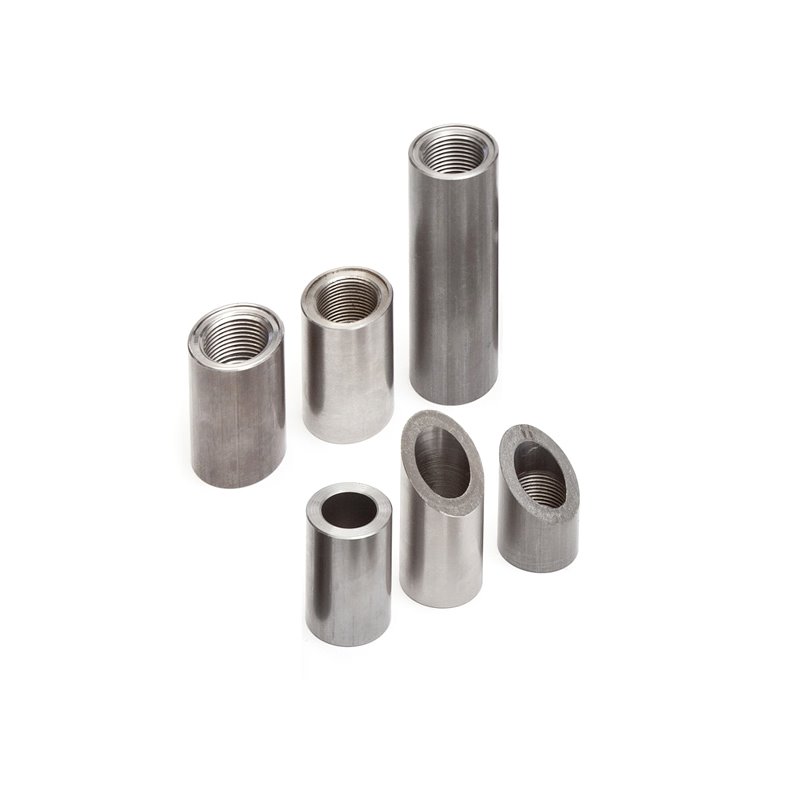

Direct welded-on piece is designed for direct mounting in pipes or for direct measuring by temperature sensor in medium.

We standardly produce the welded-on pieces of a material stainless steel DIN 1.4301 or iron DIN 1.0254.

The most commonly used threads are G 1/2 "and M 20 x 1.5.

Based on customer requirements we can change the dimensions of the welded-on pieces, the material used and threads.

Technické parametry

Type	Direct welded-on piece
Standard material	stainless steel DIN 1.4301 or iron DIN1.0254
Diameter	28 mm
Standard length L	50 a 100 mm
Standard thread	G 1/2"; M 20 x 1.5
Modification	based on customer requirements we can change the dimensions of the welded-on pieces, the material used and threads

Note: Manufacturer reserves the right to make changes in design and technical characteristics of the products. For actual information, please always contact your dealer.
