Datalogger U0121 is designed to record temperature from two external Pt1000 probes.

The recording is performed in a non-volatile electronic memory. The data can be transferred to a PC via USB-C.
In case of exceeded set limits alarms are indicated by LED, LCD and acoustically by built-in beeper.

The device includes Traceable calibration certificate with declared metrological traceability of etalons is based on requirements of EN ISO/IEC 17025 standard.

Dodávka obsahuje:

  • U0121
  • Instruction Manual
  • Traceable Calibration Certificate
  • Lithium battery 3.6 V, size AA
  • FREE Analytical Software COMET Vision

ACCESSORIES

  • you can find here

Main thermometer applications:

  • Transport of food or pharmaceuticals
  • Food and beverage industry (HACCP)
  • Pharmaceutical industry
  • Blood stations, pharmacies
  • Horticulture and cultivation of plants
  • HVAC (heating, ventilation, air conditioning, cooling)
  • Building and energy management
  • Research and development
  • Laboratories (GLP)
  • Warehouses
  • Technological processes
  • Museums, archives, galleries
  • TÜV SÜD certified to conform to EN 12830,
  • Class 1 and EN 13486, Class 1 for the transport of food

Technické parametry


Datalogger typeU0121
Measured valuetemperature
TEMPERATURE SENSOR - EXTERNAL PROBE PT1000
Measuring range -90 to +260 °C
Accuracy

±0.2°C;
±0,2 % of the measurement value in a range of +100 to +260 °C

Resolution 0.1 °C
Response time t90 of temperature measurement (temperature step 20°C, air flow approximately 1m/s) according to the connected probe
MAIN TECHNICAL DATE
Operating temperature -20 to +60 °C
Channels 2x external temperature probe
Memory 500,000 values in noncyclic logging mode; 350,000 values in cyclic record mode
Recording interval adjustable from 1 s to 24 h
Display and alarm refresh
adjustable 1 s, 10 s, 1 min
Recording mode
noncyclic - data logging stops after filling the memory
cyclic - after filling memory oldest data is overwritten by new
Real time clock
year, leap year, month, day, hour, minute, second
Power
Lithium battery 3.6 V, size AA
Protection class IP 67
Dimensions
61 x 93 x 32 mm
Weight including batteriesapprox. 130 g
Warranty 3 years
● accurate measurement of temperature, humidity, dew point, events,
● nonvolatile memory for 500 000 records
● acoustic and 3-colours LEDs alarm
● easy to use software for data analysis on PC
● communication interfaces - USB-C
● rugged design
● long battery life up to 6 years

Note: Manufacturer reserves the right to make changes in design and technical characteristics of the products. For actual information, please always contact your dealer.

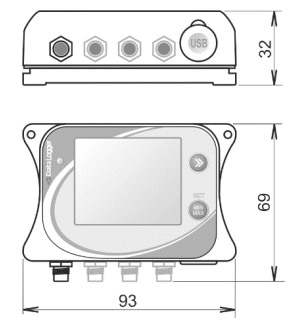

Rozměrový náčrt

Schéma zapojení

Modifikace

Soubory ke stažení
