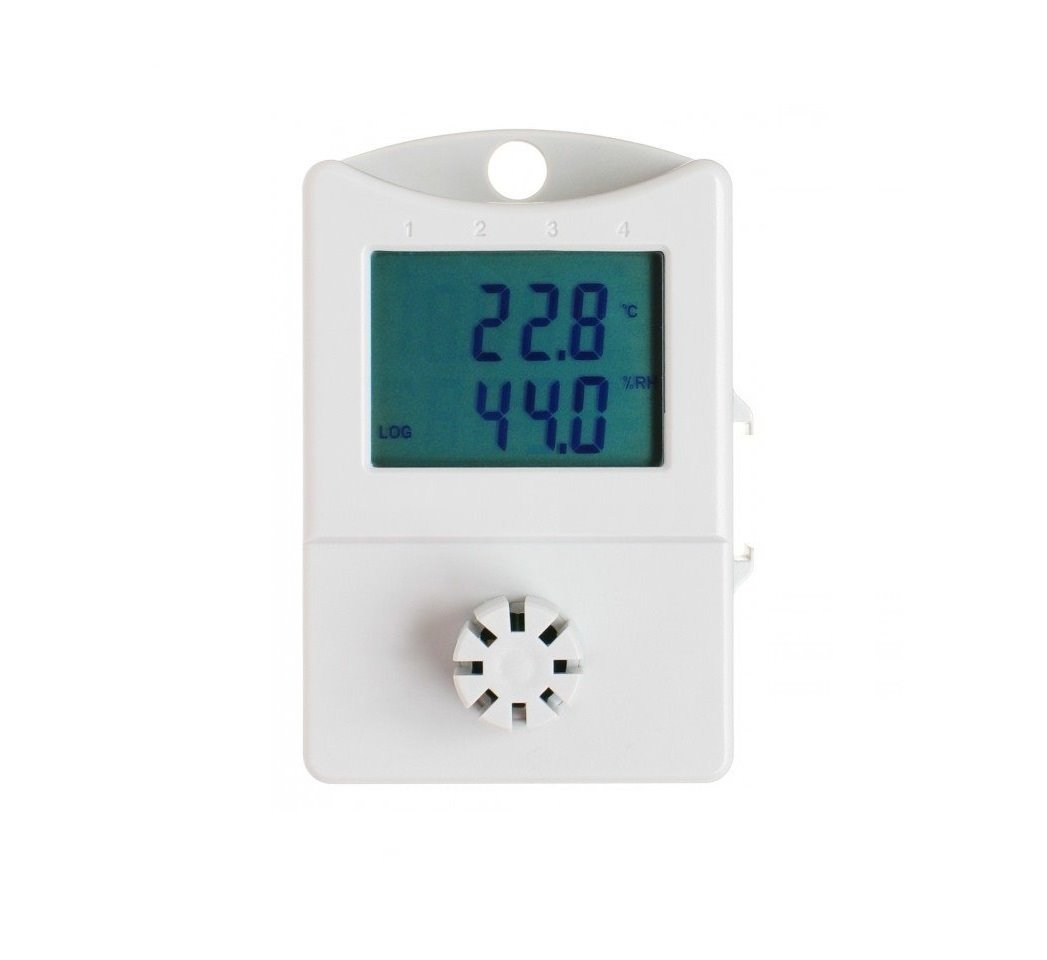

DATALOGGER S3120E - Thermometer hygrometer data logger - Economy Version

DATALOGGER S3120E - Thermometer hygrometer data logger - Economy Version

DATALOGGER S3120E - Thermometer hygrometer data logger - Economy Version

CONFIGURATOR

CONFIGURE AND REQUEST

22785
__KOUPIT__
__NABIDKA__
__JINY DOTAZ__

BBB

--%>

Data loggers S3120E is designed for record of temperature and humidity. Values are stored to a non volatile electronic memory. Data transfer to the personal computer for further analysis is performed via USB, RS232, GSM or Ethernet interface by means of a proper communication adapter. The device includes Traceable calibration certificate with declared metrological traceability of etalons is based on requirements of EN ISO/IEC 17025 standard.

For communication with the PC must be from Optional accessories ordered USB adapter or COM adapter or start/stop magnet if is needed to control logging the other way than directly from computer.

Included in delivery:

  • S3120E
  • Lithium battery 3,6V
  • Manual
  • Traceable calibration certificate
  • Technical support at discussion forum
  • FREE analytical software COMET Vision

ACCESSORIES

  • you can find here

Main applications of data logger:

  • Food and beverage industry (HACCP)
  • Pharmaceutical industry
  • Horticulture and cultivation of plants
  • HVAC (heating, ventilation, air conditioning, cooling)
  • Building and energy management
  • Research and development
  • Laboratories (GLP)
  • Warehouses
  • Technological processes
  • Museums, archives, galleries



Technické parametry

Type of datalogger S3120E
Measured Value Temperature
Relative humidity
Counted values (dew point…)
TEMPERATURE SENSOR
Measuring range -30 to +70 °C
Accuracy ± 0.6 °C (-30 to +30 °C);
± 0.8 °C (+30 to +70 °C)
Resolution 0.1 °C
HUMIDITY SENSOR
Measuring range 0 to 100 % RH
Accuracy ± 3 % RH from 5 to 95 % at 23 °C
Resolution 0.1% RH
DEW POINT
Measuring range -60 to +70 °C
Accuracy ±2 °C at ambient temperature T <25 °C and RH >30 %
Resolution 0.1 °C
GENERAL TECHNICAL DATA
Operating temperature -30 to +70 °C
Channels internal temperature and humidity sensor
Memory 32,000 values (non-cyclic record)
Recording interval adjustable from 10 s to 24 h
Display and alarm refresh each 10 s
Recording mode noncyclic - data logging stops after filling the memory
cyclic - after filling memory oldest data is overwritten by new
Real time clock year, leap year, month, day, hour, minute, second
Power lithium battery 3.6 V; size AA
Protection class IP 30 in accordance with EN 60529
Dimensions 93 x 64 x 29 mm
Weight (including batteries) approx. 115 g
Warranty 3 years

● accurate measurement of Temperature, Humidity, Dew point, Current (4 – 20 mA), Voltage (0 – 5 V, 0 – 10 V), Pulses, Events
● nonvolatile memory for 32 000 values
● indication of alarm conditions via email, SMS or visually
● software for data analysis on PC
● communication interfaces - USB, RS232, GSM modem, Ethernet
● rugged design with protection up to IP67
● battery life up to 7 years

Note: Manufacturer reserves the right to make changes in design and technical characteristics of the products. For actual information, please always contact your dealer.

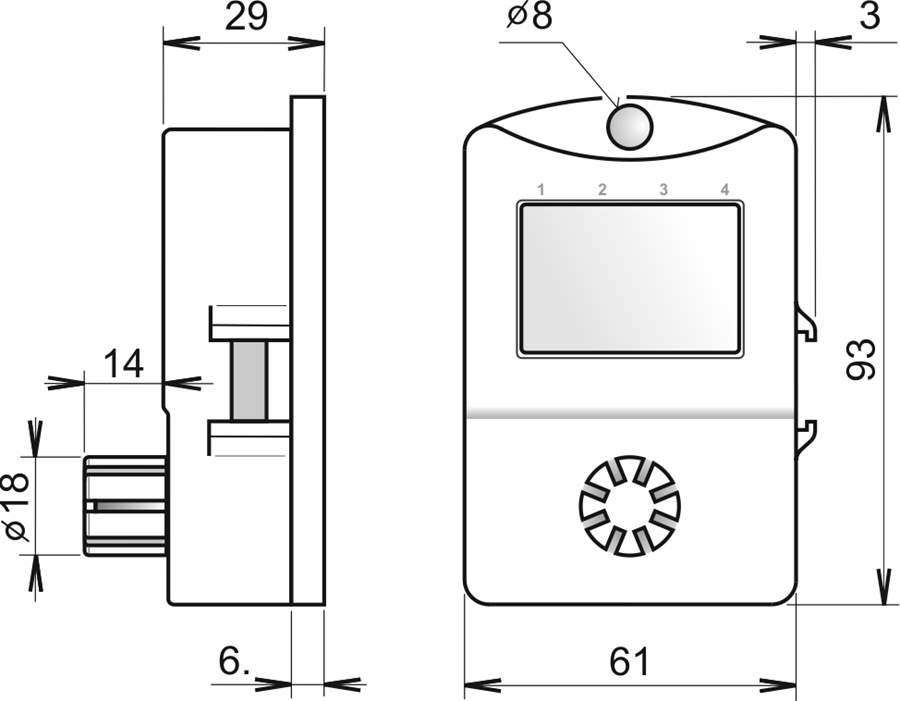

Rozměrový náčrt

Schéma zapojení

Modifikace

Soubory ke stažení
