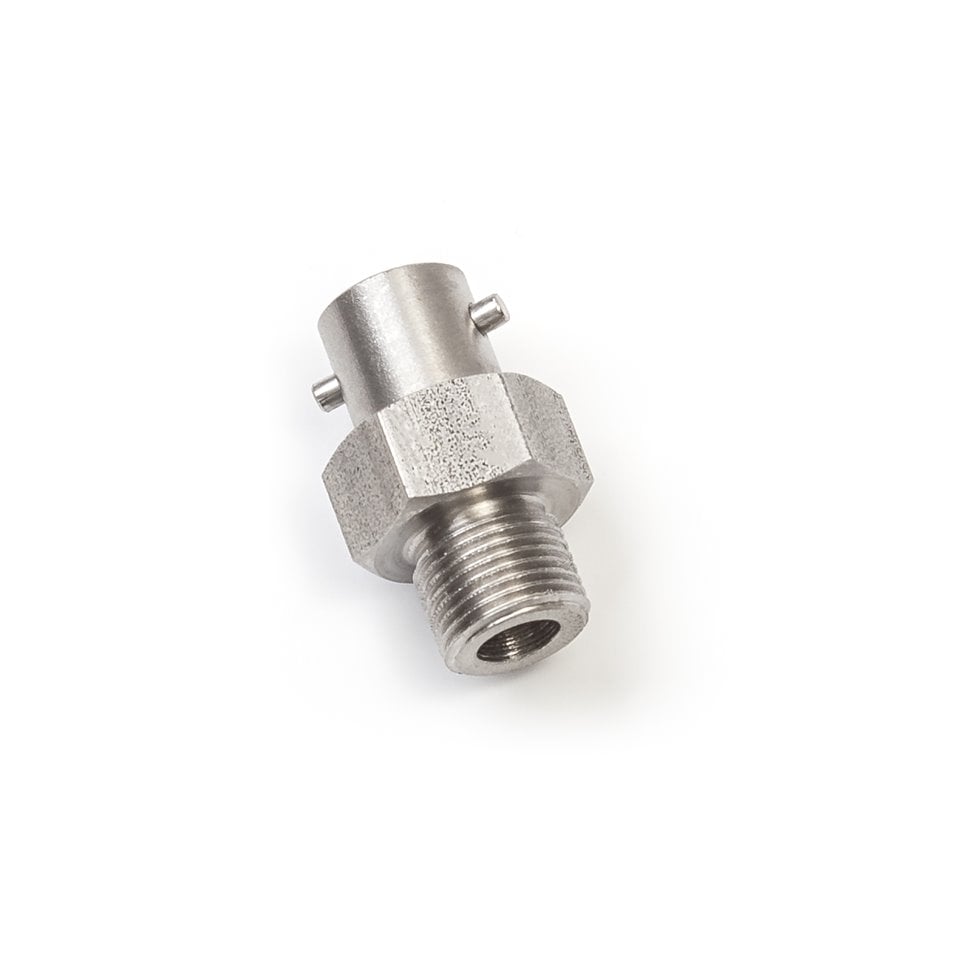

Bayonet adapter BAM is an accessory designed for temperature sensors with bayonet. Bayonet adapter is made of stainless steel 1.4301. These bayonet adapters are applied to the measured element or application by using thread (according to table of technical parameters) and are tightened by nut on bayonet adapter.

Bayonet adapter can be modified according to customer requirements.

Technické parametry

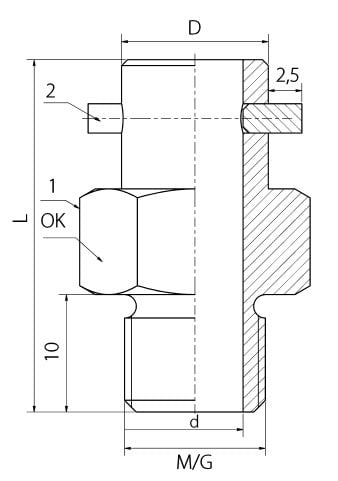

Technical parameters of bayonet adapter with BAM nut
OK	Thread M/G	Hole diameter d	Length of adapter L	Diameter of adapter D
17	M10 x 1	7 mm	30 - 100 mm	12 / 14 mm
	M12 x 1
	M12
	M14 x 1.5	7 / 9 mm
	G 1/4
22	G 3/8
24	G 1/2

Note: Manufacturer reserves the right to make changes in design and technical characteristics of the products. For actual information, please always contact your dealer.
